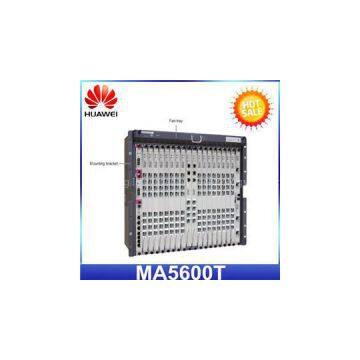

Huawei MA5600T Optical Line Terminal OLT With GPBD GPFD

Place of Origin	China

Quick DetailsPlace of Origin:Guangdong,China(Mainland)Brand Name:HuaweiModel Number:MA5600TType:OLTService board:GPBC/GPBD/EPBC/EPBD/OPFAService card ports:16 slotsDC Power:-48V DCOperating pressure:54kPa~106kPaOperating humidity:5%RH~95%RHOperating temperature:-30℃~+60℃Maximum power consumption:1112.40WBackplane bus switching capacity:3.2 Tbit/sDimension:482.6mm*275.8mm*441.7mmPackaging & DeliveryPackaging Details:Original ZTE carton packageDelivery Detail:Shipped in 7 days after paymentHUAWEI SmartAX MA5600T 8/16/24/32/48.... Ports GPON OLTProduct DescriptionSmartAX MA5600T is the global first OLT which integrates the functionality of aggregation switch and edge router.The MA5600T provides the voice, data, and video services that feature large capacity, high rate, and high bandwidth. To be specific:The MA5600T functions as an optical line terminal (OLT) in a GPON network to work with the optical network unit (ONU) and optical network terminal (ONT).The MA5600T supports rich network applications, such as FTTH, FTTB, and FTTC.The MA5600T meets the network requirements of base station transmission, IP private line interconnection, and multi-ISP wholesale.The MA5600T supports the point-to-point (P2P) FE optical access. By cooperating with the ONT, the MA5600T provides users with the P2P FTTH access.AppearanceApplicationThe MA5600T/MA5680T/MA5603T/MA5683T/MA5608T is a series of large-/medium-/small-capacity devices that support integrated fiber-copper access and access-aggregation integration.BRAS: broadband remote access serverSTB: set top boxCATV: cable TVONT: optical network terminalPSTN: public switched telephone networkMG: media gatewayMDU: multi-dwelling unitOLT: optical line terminalODN: optical distribution networkONU: optical network unitService Board/ PortBoard TypeSilk ScreenFull NameSlotControl boardSCUNSuper Control Unit Board9 and 10SCULSuper Control Unit BoardService boardGPBC4-port GPON OLT Interface Board1-8and11-18GPBD8-port GPON OLT Interface BoardOPFAFE P2P Optical Interface BoardTOPATDM Traffic Over PSN BoardSPUAService Process BoardETHBEthernet Service Access BoardSPUBService Process Unit BoardCSPACESoP Service Process BoardUpstream interfaceboardGICF2-port GE Optical Interface Card19 and 20GICG2-port GE Electrical Interface CardGICK2-port GE Optical/Electrical Interface CardX1CA1-port 10GE XFP Optical Interface Unit BoardX2CA2-port 10GE XFP Optical Interface Unit BoardX2CS2-port 10GE Uplink Interface CardClock boardCITDCombo Interface Transfer Board0BIUABITS Interface Unit BoardPower interface boardPRTEConnect Power Board21 and 22BoardTypeSilkScreenFull NameFunctionControlboardSCULSuper ControlUnit Board● ?System control and management unit● ?Local and remote maintenance● ?Active/standby switchover● ?Environmental monitoring parameters● ?Upstream transmission through four GE optical ports● ?VoIP logical daughter boardSCUNSuper ControlUnit Board● ?System control and management unit● ?Local and remote maintenance● ?Active/standby switchover● ?Load balancing● ?GE or 10GE channel to the service board● ?Environmental monitoring parameters● ?M2XA, CKMC, and FLBA daughter boardsFour GE upstream optical ports with the SFP optical transceiverServiceboardGPBC4-port GPON OLT Interface Board● ?Four GPON ports● ?Up to 64 ONTs for each GPON portGPBD8-port GPON OLT Interface BoardEight GPON SFP ports (one-fiber bi-directional port)Up to 128 ONTs for each GPON portClass B+ and class C+ optical transceiversQuerying the temperature and powering off the board in case of a high temperatureOPFAFE P2P Optical?Interface Board16-channels of FE optical signalsBase station backhaul and transmission of the synchronous Ethernet clock signalsTOPATDM Traffic OverPSN BoardNative TDM function (when the NH1A/O2CE subboard is configured)CESoP function (when the EH1A/CSSA subboard is configured)TDM signal upstream transmission through the E1 port(when the NH1A/EH1A subboard is configured)TDM signal upstream transmission through the STM-1 optical port (when the O2CE/CSSA subboard is configured)CSPACESoP ServiceProcess BoardSAToP processing of 64 channels of E1 signalsActive/standby switchover or load sharing of the control boards8 kHz clock channel from the CSPA board to the backplane, which is used totransmit the clock signals recovered from the service to the control boardProviding one 10GE attachment unit interface (XAUI) to each control boardQuerying the temperature and powering off the board in case of a high temperatureSpecificationParameterSpecificationOperating wavelength1310 (RX)/1490(TX)Optical power+2 ~ +7dBmReceiving sensitivity-27dBmMax distance20kmMax splitter ratio1:32Capacity8 PON, 256 ONUsMAC8k for single OLT module card, 16k for the whole rackUplink port8 10/100/1000 Ethernet RJ45 portPON port8 SC fiber portControl portRJ45, RS232, to debug the deviceMTBF100,000 hoursGEON traitsSupport IEEE802.3ahSupport DBA with minimum1Kbps granularity adjustableSupport 1Gbps up link and down link symmetrical bandwidthSupport AES-128 encryption to each Logical Link IdentifierSupport powerful OAM function, implement telnet management, maintenance and upgradeSupport auto discovery and auto register of ONU (real-time operation)Protocols supportedSupport IEEE802.3, IEEE802.3u, IEEE802.3abSupport IEEE802.1Q VLANSupport IEEE 802.1P QoSNetwork managementSupport GUI management based on SNMPSupport Local serial interface management and local serial interface management and Telnet GUI management based on CLIOther functionsSupport 1GMPv1/v2 protocol report, query and leave message mouseSupport DHCP SnoopingSupport Ipv4 address learning based at DHCP SnoopingSupport ARP Snooping, QoS etcOur Services ? ?We sincerely invite all interested buyers to visit our company and contact us directly for further information, We are sure your any inquiry or requirement will get prompt attention.
