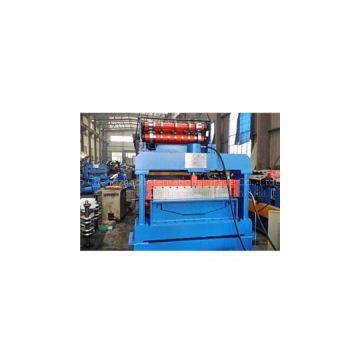

Metal Sheet Roll Forming Machine

Place of Origin	China

1. Profile:2. Components of line:No.NameUnitQty.15T passive un-coilerset12Main Machine For Roll Formingset13PLC Control Systemset14Cutting deviceset15Hydraulic Stationset16Run out Tableset23. Technical specifications:(1)Un-coilerUn-coiler: umbrella type, passive feeding, manual tensingBearing weight: 5Tons(2)Main forming machine1. Material specification: Q235~Q355, thickness: 6mm; 50*50*6mm/65*65*6mm2. Forming speed: 12-15 m/min3. Forming stations: 5 stands4. Installation type: wall panel type5. Shaft diameter: 100mm6. Material of roller: Cr12 fine steel with quenching and tempering process, HRC58-62, and surface coated with chrome.7. Material of main shaft: No.45 fine steel with heating process8. Main motor power: 37KW9. Motor power of hydraulic station: 11KW10. Cutting type: hydraulic drive, cutting after forming11. Material of cutter: Cr12 quenching process12. Electric system: PLC control13. Transmission type: gear box drive(The quoted machine has been adapted to your special requirements as well as to your specification. Photos of machines are for example only.)(3)PLC control systemComputer adopt PLC control system: PanasonicComputer operating board: 7 inches MCGSFrequency: Omron(4)Hydraulic systemMotor power of hydraulic station: 11KW(5)Output table4. Flow Chartput coils ----- guide feeding panel ----- roll forming ----- cutting ----- output products5. Main machine outline
