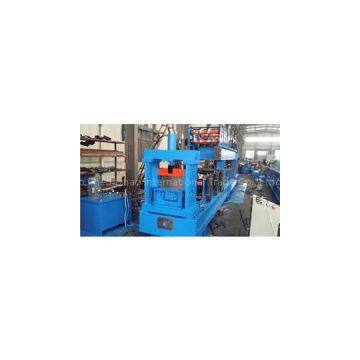

Automatic Corrugated Steel Sheet Roll Forming Machine

Place of Origin	China

1. Profile:2. Components of line:No.NameUnitQty.15T Hydraulic un-coilerset12Main Roll Forming machineset13PLC Control Systemset14Trace cutting deviceset15Hydraulic stationset1610m auto stackerset13. Technical specifications:(1) 5T hydraulic un-coilerUn-coiler: hydraulic tense, motor-driven uncoilBearing weight: 5 Tons(2) Main forming machine1. Forming specifications: PPGI, with material thickness: 0.3-0.8mm; yield strength: ≤ Q235MPa2. Forming speed: 40m/min?3. Forming stations: 20 stands4. Material of roller: NO.45 fine steel with quenching and tempering, and coated with chrome, single face ≤0.05mm ?5. Material of main shaft: NO.45 forged steel with heating process6. Main shaft diameter: 76mm7. Main motor: SIEMENS, Main motor power: 15kw8. Hydraulic station power: 11KW with energy accumulator9. Material of cutter: MovCr12 with quenching process10. Servo motor power: 5KW11. Driven system: chain driven12. Electrical brand: Schneider?13. Encoder: Omron(The quoted machine has been adapted to your special requirements as well as to your specification. Photos of machines are for example only.)(3) PLC control system1. Computer adopt PLC control system: Omron2. Computer operating board: Omron3. Frequency: OmronFunction and operation: Control the starting, operation and stopping of the complete line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length. Both man-made and auto operations: on the man-made condition, each equipment can be operated by switch.(4) Hydraulic systemMotor power of hydraulic station: 11KWFunction: apply power for cutting machine(5) 10m auto stackerThey are used to support the final products.4. Flow Chart:uncoil -- guide feeding -- roll forming -- cut to length -- run out table
