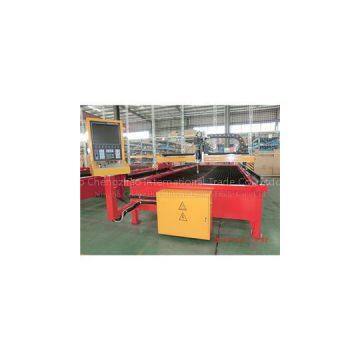

Hydraulic Flame Plate Cutting Machine

Place of Origin	China

1.Description:1.1Plotting systemCompatibility of plotting softwareSpecial functions to DXF files;CAD clearing function;CAD breaking and ranking functions.Bridge function, including continuous bridge, break bridge and interruption bridge.1.2 Cutting pathAble to nestle quickly, continuously and automatically by placing hundreds of parts on many steel plates.Able to conduct optimized nestling on the rest steel plates.In the optimized nestling process, able to specify, revise and choose parts and have free horizontal movement, rotation and matrix etc.2.Specifications:ItemDescriptionsSpecificationMachine bodyMachine Size(mm)2000X14000 (Gantry type)Effective Cutting Area(mm)1200mmx12000mm?Max. Traveling Speed(mm/min)12000mm/minCutting TorchCutting Torch Station Number2 stationsOxy-fuel Cutting Torch Number1 Gas torchOxy-fuel Cutting Thickness(mm)6-120mmOxy-fuel Torch Height Sensormanufacturer's?Torch controllerOxy-fuel Cutting Speed(mm/min)50-800mm/minPlasma Cutting Torch Number1 Plasma torchPlasma Torch Height SensorSensor THCPlasma Torch Anti-collisionmanufacturerPlasma Piercing Thickness(mm)32mm(carbon steel)/Edge Star 50mmPlasma Cutting Speed(mm/min)50-4500mm/minPlasma UnitModelHypertherm HPR260XDCountry of originMade in USAMax output current260APower30KWDuty cycle100%Cutting angle2-4DriveDrive ModelDual-drive/Panasonic AC servo motorGear BoxSEW(Germany Brand)Controller and SoftwareCNC Control SystemHypertherm Micro EDGE(Made in USA)Nest SoftwareFASTCAM (Australia)Dust ExtractionWater Surface Cutting TableCovered by userElectrical ComponentPLCDelta(Taiwan Brand)Electric ComponentsCHINT(China)DocumentsInstallation H Beam DrawingmanufacturerCutting Table DrawingmanufacturerMachinery ManualmanufacturerCNC System ManualHyperthermAC Servo Motor ManualPanasonicElectricity DiagrammanufacturerTAYOR Inspection ReportmanufacturerQuality CertificationmanufacturerPlasma Unit ManualHypertherm.
