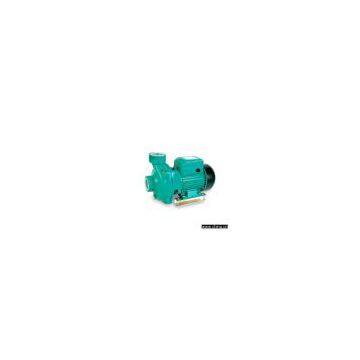

Sell Dhm series Pump

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Model No. PowerInlet/outletMax.FlowMax.HeadMax.SuctG.W. Packing Quatity.20" HP L/MIN M M KG MM SET DHm/5C 0.8 2"x2" 500 12.5 8 14.8 350*205*270 1500 DHm/5B 1.0 2"x2" 600 13.7 8 15.7 350*205*271 1500 DHm/5A 1.5 2"x2" 650 14.5 8 16.3 350*205*272 1500 DHm/5BM 1.5 2"x2" 600 20.2 8 21.2 415*250*294 950 DHm/5BN 1.5 2"x2" 600 20.2 8 21.2 415*250*295 950 DHm/5AM 2.0 2"x2" 600 22.5 8 23.6 415*250*296 950 DHm/5AN 2.0 2"x2" 600 22.5 8 23.6 415*250*297 950 Pumps installation and applications: These pumps are suitable for handling clean water thta is not chemically aggressive to the pump. Extremely reliable to use, they are quiet and virtually maintenance-free, finding many uses in domestic and civil applications. They are mainly used for automatic distribution of water, transferring water, watering gardens etc. Structural characteristics: 1)Cast iron pump body 2)Brass impeller with centrifugal radial flow type 3)Stainless steel mechanical seal (graphite to ceramic) or carbon-ceramic 4)45# steel shaft Operating conditions Liquid temperature: up to 60oC Ambient temperature: up to 40oC Motor 220V / 50Hz or 220V, 110 - 220V / 60Hz models are available on request.
