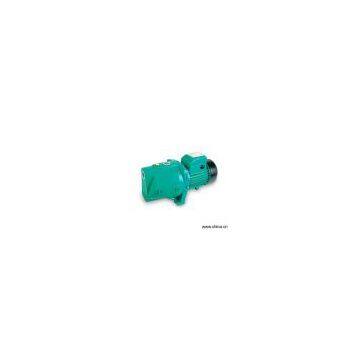

Sell DJWm serise Pump

Model No.:
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Model No. PowerInlet/outletMax.FlowMax.HeadMax.SuctG.W. Packing Quatity.20" HP L/MIN M M KG MM SET DJWm/1C-E 0.5 1"X1" 60 35 9 10.5 400*175*202 2050 DJWm/1B-E 0.7 1"X1" 60 41 9 10.8 400*175*202 2050 DJWm/10H 1 1"X1" 60 56 9 16 445*195*217 1540 DJWm/12H 1.25 1"X1" 60 64 9 16.5 445*195*217 1540 DJWm/15H 1.5 1"X1" 60 72 9 16.8 445*195*217 1540 DJWm/10M 1 1"X1" 90 46 9 16 445*195*217 1540 DJWm/12M 1.25 1"X1" 90 50 9 16.5 445*195*217 1540 Pump installation and applications: These close-coupled self-priming shallow well jet pumps with built-in ejectors are used for clean liquids or slightly dirty surface water. Applications include boosting pumps for central water systems with low pressure and washing with a jet of water. They are also extensively used in households, gardens, hotels, canteens, tower buildings, villas, water supply and mining water drainage systems. Structural characteristics: 1)Cast iron pump body 2)Stainless steel mechanical seal (graphite to ceramic or carbon-ceramic 3)Plastic or brass impeller 4)45# steel shaft Operating conditions: Liquid temperature: up to 35oC Ambient temperature: up to 40oC Motor 220V / 50Hz or 220V, 110 - 220V / 60Hz models are available on request. DJWm/15M 1.5 1"X1" 90 55 9 16.8 445*195*217 1540
