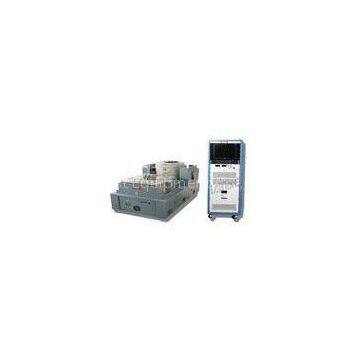

Big Displacement 100mm Vibration Testing Machine For Military Hardware Testing

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LABTONE		Place of Origin	China
Model Number	EV420

Product Description

Delivery Time:45 Working Days
Certification:CE / ISO

Big Displacement 100mm Vibration Testing Machine For Military Hardware Testing

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Key Applications: Automotive parts and systems - qualification testing Electronic assembly, computer equipment testing Avionics and military hardware testing Satellite component testing Product and package testing General stress screenin

Features:

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability; Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation; High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion; Quick self-diagnosis with safety interlock, high safety reliability; Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance; Provide horizontal and vertical expansion platform for different application; Simple controller operation.

Working Principle:

Specifications: EV340-EV450

Model	EV340	EV350	EV420	EV430	EV440	EV450
Vibration Generator	VG4000/76	VG5000/76	VG2000/100	VG3000/100	VG4000/100	VG5000/100
Frequency(Hz)	2-2500	2-2500	2-3000	2-2500	2-2500	2-2500
Max Exiting Force(kg.f)	4000	5000	2000	3200	4000	5000
Max. Displacement (mmp-p)	76	76	100	100	100	100
Max. Acceleration(g)	80	100	90	71	66	71
Max. Velocity(cm/s)	200	200	200	250	250	250
Payload(kg)	1000	1000	500	500	800	1000
Armature Mass(kg)	50	50	23	45	60	70
Armature Diameter(mm)	φ440	φ440	φ320	φ400	φ445	φ445
Cooling Method	Forced Air Cooling
Vibration Generator Weight(kg)	3500	3800	2000	3200	4200	4500
Vibration Generator Dimension LWH(MM)	110013001520	110013001520	85010001100	110013001440	110013001520	110013001520
Power Amplifier	Amp55k	Amp70k	Amp25k	Amp40k	Amp60k	Amp70k
Cooling Method	Forced Air Cooling
Power Amplifier Weight(kg)	800	900	550	600	800	900
Power Amplifier Dimension LWH(MM)	8005501920	8005501920	8005501920	8005501920	8005501920	8005501920
Utility Requirements	3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)	80	90	45	64	85	85

Application:

Services:

Uptime is paramount: We strive to ensure rapid, high-quality service and support Dialogue: We are committed to responding promptly to all customer requests and questions and to keeping customers informed regarding service and support status so they can plan efficiently Skilled team of technicians and engineers: Our staff continuously receives the latest training in order to deliver the best possible service and support
