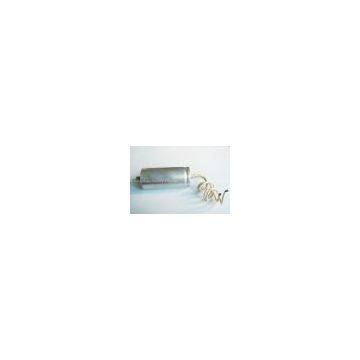

dry ac lighting capacitor CBB80

Brand Name	BSD/OEM		Place of Origin	China
Model Number	CBB80

CBB80 Product Description:
Capacitors of this series are particularly suitable for parallel compensation of
discharge lamps.

1. Characteristic:
CBB80 Dry A. C capacitors are used for A. C motor's starting and running, it is
small cubage, light weight, low dissipation factor, low temperature rise, high
insulation, fine self-healing property. We can make the A. C capcitors with
inner overtemperature resistant protect device in ROHS testing according to
clients' requirement.

2. Structure:
1). The capacitor body is convoluted with metallized film.
2). The container is adoptted flame & temperature resistant engineering plastic
or aluminum, etc metal material. It is enveloped with epoxy resin.
3). The install part is screw at bottom of container or double hanging hook.
4). Connection terminals: Plastic-sealed wire, fast connected terminal and
discharge resistance.
5). We can design the particular specification and connection terminal according
to clients' requirement.

3. Application:
Used for AC electronic power system at 50HZ(60HZ). Especially for fluorescent
lamps, efficient metal-halogenide lamps for debase current in circuit and save
electric energy.

4. CBB80 Technical specification
1). Rated capacitance: 1¼F ~80¼F
2). Capacitance tolerance: 5% (J), 10%~ 5% (U), 10% (K)
3). Rated voltage: 110V~600VAC
4). Rated frequency: 50/60Hz (low voltage) d50kHz (high voltage)
5). Tangent of the loss angle(100HZ): Tg´d0.0020(MPP) tg´d0.0040(MPET)
6). Insulation resistance: T-T: e3000M© T-C: e1000M©
7). Climatic category: 40/105/21
8). Safeguard class: P0, P1
9). Reference standard: GB3667, UL810, EN6025

No    Model       Capacity   Size
1       CBB80      3uF 250VAC    25x57mm
2       CBB80      4.5uF 250VAC          25x57mm
3       CBB80      8uF 250VAC    25x57mm
4       CBB80      9uF 250VAC    25x57mm
5       CBB80      10uF 250VAC 35x70mm
6       CBB80      15uF 250VAC 45x70mm
7       CBB80      18uF 250VAC 45x90mm
8       CBB80      24uF 250VAC 45x90mm
9       CBB80      32uF 250VAC 45x92mm
10     CBB80      35uF 250VAC 45x92mm
11     CBB80      55uF 250VAC 50x95mm
