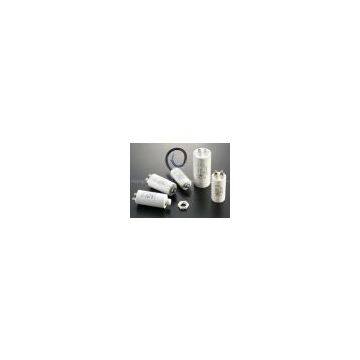

CBB 60 AC Metallized Polypropylene Capacitor air conditioner

Type: CBB60 AC Motor Capacitor
The capacitor has advantages of low dissipation factor, high insulation resistance, good self-healing character, steady electric performance, anti-striking current and strong over-carrying capacity etc. It is applied to the motors for washing machine, detached horsepower motors etc and beneficial to the running of motors.
Material of Can: Plastic Can or Metal Can. Easy Mounting with Integral Stud (optional)
Capacitance Range: 1 to 100MFD
Rated voltage: 110 to 500VAC
Temperature range: -40 to 85?
Testing voltage: T-T 2Un 2s, T-C 2000VAC 60s
Insulation Resistance: T-T=3000MO?MFD, T-C=1000 MO
Dissipation Factor: tand=0.002
Capacitance Tolerance: J(±5%)?K(±10%)Fulfilled at the request of customers.
Executing Standards IEC60252, UL810, EN60252, VDE0560-8, GB3667.1-2005

AC Motor Run Capacitor CBB60 ( air conditioner )  Product Description: The
capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as
dielectric. Its components are sealed with flame-retardant epoxy resin. It has
cylindric outline with high reliability and stability.
 Applicable to startand operation with 50/60Hz. A. C single motor, specially
suit for micro pump, baric pump, micro motor and so on. Broadly applied to
starting and running of AC single-phase motors at 50Hz(60Hz) frequency for
washers and high efficiency compressors of refrigerators etc.
AC Motor Run Capacitor CBB60 ( air conditioner ) Specifications


      uF450VAC250VAC
      D(mm)H(mm)D(mm)H(mm)
      1uF25572557
      3uF25572557
      5uF30702557
      8uF35603560
      10uF35703560
      12uF35703560
      15uF35703570
      18uF40703570
      20uF40703570
      25uF40803570
      30uF45924070
      35uF45924070
      40uF45924070
      45uF45924070
      50uF50924592
      55uF501004592
      60uF501164592
      70uF501164592
      80uF6012050100
      90uF6012050100
      100uF6012050116
