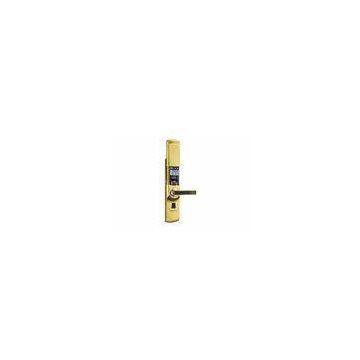

Biometric Fingerprint Lock Rust Proof With 304 Stainless Steel Body ROHS

Brand Name	TENON		Place of Origin	China
Model Number	DF3150

Delivery Time:3 to 4 working days after received your payment
Certification:CE,ISO9001,ROHS,FC,SGS

Groups Managing System , 80 Users, Biometric Fingerprint Lock , 304 Stainless Steel

Fingerprint Biometric Technology no longer exists just in the fantasy world. Everyday its applications become part of our daily lives. What could be more familiar than a door lock? We offer fingerprint technology that will benefit consumers. All at a great price!

We specialize in finger access biometric fingerprint recognition door locks that identify a user's fingerprint ridge pattern to create a binary number which represents certain points in the pattern. With this information, a user's finger is scanned and the fingerprint pattern is detected and used for access control through a keyless door lock.This biometric security keyless door lock system allows for complete keyless entry using only fingerprint authentication.

Our Fingerprint Door Lock Feature:

Zinc alloy die casting, retain strong, increase beautiful Zinc alloy die casting plate Solid frame, hard material, rust proof, anti oxidation Free hand protection, TENON humanized design Separated plate and lock body, dual anti-thief B lock core certification by China Ministry public security Suitable for wet and dry fingers, fingerprint peeling and fingerprint slight wear Durable and comfortable physical button password design Fingerprint system, verify quickly Special for project, cloud open High strength acrylic touch sensitive plate TENON independent researched and developed the TENSECU-P1 system, humanized management Support input 18 digits virtual password to unlock, useful Special for engineering Stable fingerprint sense technology, strong penetrate red light fingerprint sensor Fashionable kirsite to protect sliding cover, classic fingerprint sensor protect design Mechanical and physical keyboard keys, long life, durable and touch better Strong penetrate red light fingerprint sensor Comfortable physical keyboard password design,more kinds patent designs Mute mode function, multiple privilege assignment

Technical parameters

Type	Project	Technology Parameter
Working power	Rated voltage	DC4.8 ~6.5V
	Max working voltage	DC4.5 ~10V
	Warming of low voltage	≤4.8V
	Power supply set	Standard match 4AA batteries
	Battery life	＞10000 times
	Backup voltage	USB power supplier
Fingerprint head	Definition angle of acquisition	9.6mm×9.6mm / 35mm×17.5mm
	Touch face mask, induction card	Semiconducto
	Sensor	FPC1020AM / FPC1011F3
	Resolution	363DP
	Acquisition deflection angle	±45°
	Anti-static ability	≤|±30KV|
Electric property	Quiescent current	≤40μA(one mechine)
	Dynamic current	≤140mA
	Peak current	≤300mA
	Working temperature	-20℃~80℃
	Relative humidity	20%RH~95%RH
	False rejection rate	＜0.1%
	False reception rate	＜0.0001%
	Number of ssers	80(Extensible)
	Validation comparison	≤0.5S
	Contrast method	1:N
	Memory period	10 year
Display	Screen area	24mm×12mm(A)/35mm×17.5mm(B)
	Screen type	OLED
	Definition	128×64
	Display Content	Operating procedures and results
	Working temperature	-20℃~80℃
Auxiliary function	Time function	Real-time Clock
	Record of unlock	The latest 1000 times open data recorders.
	Prying-resistance alarm function	It will alarm when the front plate serve deforms.
	Access control function	Set guests access time
	Unlocking function	In the state of unlocking
	Restore factory setting	Return interface operation to the factory setting.
	Voice function	Select voice or Mute mode
