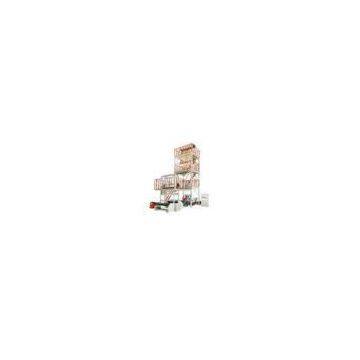

Two Screw Double Layer Plastic Film Blowing Machine With Rotary Die Head
- T/T L/C D/P D/A
- 7 days
You May Like
-
48kw Automatic Pe Bubble Film Making Machine With 1000-1500mm Width
-
380V HDPE Bubble Plastic Film Blowing Machine With Single Rewinder CE
-
Professional High Speed LDPE Film Blowing Machine 40-70kg/h
-
High Speed Mini Pe Plastic Film Blowing Machine 11kw 22kw 30-50kg/h
-
Automatic LDPE HDPE Plastic Film Blowing Machine With Double Head
-
Double Colour Striped Plastic Film Blowing Machine For Low Density Polyethylene
Product Details
Brand Name | HEROING | Place of Origin | China | |
Model Number | 2SJ-G Series |
Product Description
Certification:CE
?
?
Quick Detail:
?
?
?
Description:
?
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc,Which are widely used for packing liquid, printed base material, products for export and industrial products,etc.
Characteristics:
1.Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
?
?
Specifications:
?
Model |
2SJ-G50 |
2SJ-G55 |
2SJ-G60 |
Diameter of screw |
ф50×2 |
ф55×2 |
ф60×2 |
L/D |
28:1 |
28:1 |
28:1 |
Reduced diameter of film(mm) |
800 |
1000 |
1200 |
Single-face Thickness of film(mm) |
0.015-0.10 |
0.015-0.10 |
0.015-0.10 |
Max. Output(kg/h) |
40 |
65 |
80 |
Power of main motor(kw) |
11×2 |
15×2 |
18.5×2 |
Heating Power(kw) |
26 |
30 |
42 |
Outline diameter(L×W×H)(mm) |
4200×2200×4000 |
4600×2400×4600 |
5000×2800×5000 |
Weight(T) |
4 |
5 |
6 |
About?Us?:
HERO PLASTIC PLASTIC MACHINE CO.,LTD SINCE 1985 found at the ground south along the sea (Namely China packing City ), is a two more than ten years,enterprise specializing in making complete set of series soft packing equipments.Now the company collect an elitist for been gaged inning the design,manufacturing,examining,debugging,The whole staff of enterprise \"Striving for Survival by Quality, Striving for Development by Creative\" encourage bottom,under the concern and support of the commerce colleague,pass by not the gradually become to have to completely design to develop the ability, forerunner the production the craft with the stubborn at full split,complete process the equipments,strict examination means,science the factory hoist that manage.
Facing the new century shangwang person with the acute market competition,and fix attention on the future and have a foothold creative,constants identical.Insist\"Quality Frist,Customer Supreme\"for operate the aim.With the machine product of the high quality,on time the thoughtful service create to set up the good brand,then repay the large customer to support shangwang print machine.Our product is distributed all over the country,and exported to southeast Asia,Middle-east,Russia,South America,Africa,and the product was charmed the client.
