Home > Products > Vickers Hardness Tester > Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z
Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z
- T/T L/C D/P D/A
- 7 days
You May Like
-
Vickers Hardness Test Machine, Motorized Superficial Rockwell & Vickers Hardness Tester HD9-45
-
Digital Double Rockwell Hardness Tester,Hardness Test Machine HRSS-150
-
Digital Rockwell Hardness Tester, NDT HardnessTesting Equipment HRS-150
-
Digital Superficial Rockwell Hardness Testing Equipment, NDT Hardness Tester HRS-150L
-
LCD Screen Display Manual Superficial Rockwell Hardness Tester Equipment HRMS-45
-
Manual Superficial Rockwell Hardness Tester, NDT Hardness Test Machine HRM-45
Product Details
| Brand Name | MITECH | Place of Origin | China | |
| Model Number | HV-1000Z |
Product Description
Digital Micro Vickers Hardness Tester For Micro And Thin Shaped Components Testing HV-1000Z

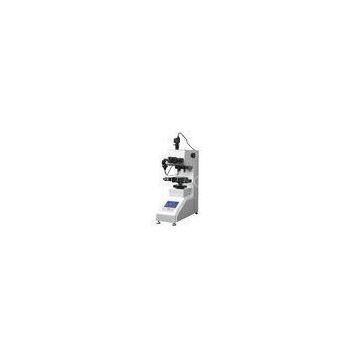

HV-1000Z Digital Micro Vickers Hardness Tester
Description:
HV-1000Z Digital Micro Vickers Hardness Tester adopts large LCD screen to display and menu type structure to choice hardness scales HV or HK, exchange hardness values among scales, store testing results and data procession automatically, as well as output by printer. By means of interface of RS-232, the instrument can be linked with computer.
Applications:
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components
Specifications:
|
Testing Force |
10g (0.098N),25g (0.245N),50g (0.49N),100g (0.98N ), 200g (1.96N),300g (2.94N),500g (4.9N),1000g (9.8N) |
|
Min Measuring Unit |
0.5μm |
|
Magnification of Microscope |
100X(For Observation )400X( For Measurement) |
|
Loading Method |
Automatically (load, keep, unload) |
|
Overall Dimension |
405×290×480mm ( L X W X H) |
|
?Net Weight |
25kg |
|
Max Height of Specimen |
100mm |
|
Power Supply |
AC220V±5%,50~60Hz |
|
Carried Standard |
GB/T4340.2GB/T4340.2 ,JJG151 |
