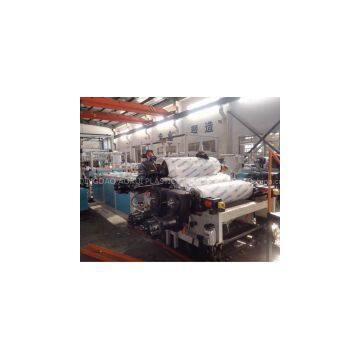

5-35mm Thickness PP PE Plastic Board Extrusion Line / Equipment

5-35mm Thickness PP PE Plastic Board Extrusion Line / Equipment

Quick detail :

  Material:PP PE
  Thickness:1-30mm
   Screw design: single screw
   Screw number : Sh120/30
   Voltage :380v/50HZ
   Motor power: 132KW
   Board thickness: 5-35mm
   Board width: 1220×2440mm
   Weight: 7Ton
   Warranty: 1 year


Description:

Process flow:

Single screw  extruder→hydraulic filter→mould→three-
roller calender→cooling bracket→edge cutting device→haul-off→transversal cutter→stacker(three roller
cooling device,transmission device,length measuring device unit)

1, The screw is designed of special mixing function and high plasticization capacity.

2,The special designed T-type mold ensures a precise control to the thickness of the board.

3, The accurate temperature control (±1) can precisely control the plasticization process, thickness and
smoothness of board.

4,The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.

5.The thickness of board is controlled by screw and pressing roller in two directions.

6.The separate roller temperature control system can precisely control the pressing roller temperature to
ensure a even thickness.

7.Cutting machine can cut the sheet with accurate length and quantity.

8.The winding device uses big torque motor, can freely regulate the winding speed and tension.

9.The automatic meter countering device can pre-set the length of the product.




Applications:

Chemical  and foodstuff industries, electronic industry etc. Such as structural tanks and covers, tank
linings, plating barrels and tanks, vacuum forming all kinds of parts and trays, artificial limb etc.
