Pvc Plastic Pipe Extrusion Line , Pvc Fiber Reinforced Soft Pipes Production Line

pvc Plastic Pipe Extrusion Line , pvc Fiber Reinforced Soft Pipes Production Line

Quick detail

working flow

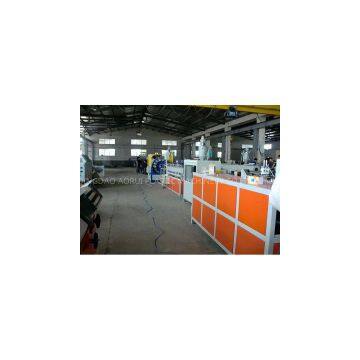

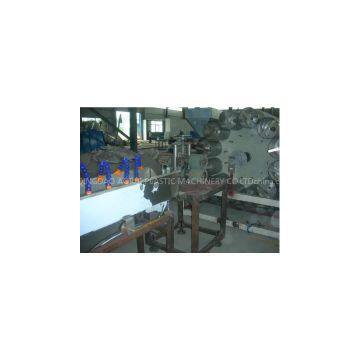

Main extruder-Die-Braider-Cooling Bath-Dry tank-Haul off-Winder-Ink Printer-Electric Cabinet

Application:

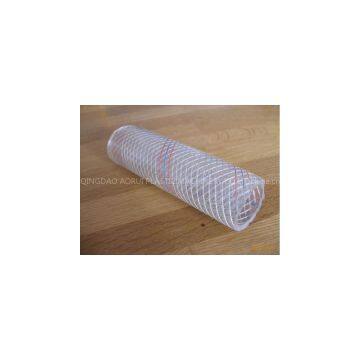

This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building

Sepecification:

1. The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and iliquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application , also it can be used in irrigating garden and lawn.

2. Equipment list of this pvc fiber reinforced production line:

A. Double Screw extruder

B. Mould

C. Vacuum sizing cooling water tank

D. Spray cooling water tank

E. Haul off machine

F. Cutting machine

G. Winder

3. Process:

conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fibre winder→warm up oven→

single screw extruder→mould→spray cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing

4.U - PVC wire threading pipe extrusion line with conical twin screw extruder as host form a complete set of different pipe mould and the corresponding auxiliary engine of the nose, the machine has reasonable structure, stable and reliable performance, implementation of the main motor, traction motor synchronous speed. And by adopting the method of vacuum sizing, sizing effect is good, high degree of automation, and set a good man-machine interface.

5. This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.

6. High efficiency singel screw extruder.  It can produce PVC garden hose or pvc soft hose. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm . This pvc hose is mostly used as home, garden,farm, lawn and so on.

Technical parameters:

Our Advantages:

Have many years experience

good pre-sales and after-sales service

easy operate high output
