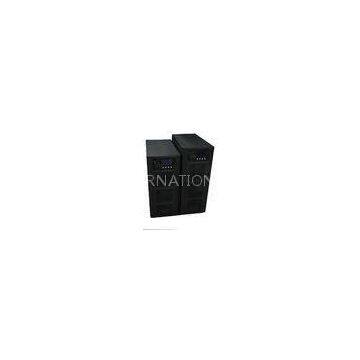

Double Conversion Online UPS , 10KVA Pure Sine Wave UPS
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Frequency Double Conversion Online UPS 15KVA With LCD / LED
-
20KVA Double Conversion Online UPS , Single Shase To Three Phase Output
-
10 - 30KVA 3 phase Pure Sine Wave UPS With External Battery
-
High Frequency Pure Sine Wave online UPS With Internal Battery
-
40 - 80KVA Pure Sine Wave UPS With Zero Conversion Transfer Time
-
Home 600W Ture Pure Sine Wave Power Inverter For Fans / Lights
Product Details
| Brand Name | GSF/OEM | Place of Origin | China | |
| Model Number | UT3110 |
Product Description
Certification:CE
1 10KVA 3/1 High Frequency online UPS
2 LCD and LED display
3 Cold start
4 EMI/PFI noise filter
5 PFC technology
6 Wide input voltage range
7 Automatical fan speed adjustment
8 Advanced battery management
9 Network/fax/modem surge protection
10 Automatic battery charging on/off mode
11 Complete protection function
12 Lighting and surge protection
13 Smart RS232 port with monitoring software
14 True sine wave output
15 Shutdown & restart schedule
Description and Application:
Online HF UPS UT31 series 10KVA-20KVA adopt the latest R&D DSP control technology, which can improve performance & system reliability effectively and achieve higher level of power density and miniaturization. With strong overload capability, UT31 can offer highly reliable power for departmental servers, small local area networks, workstations, industrial machines, small medical equipment, and other small precision electronic devices.
Specifications:
| UT3110 | UT3115 | UT3120 | |
| INPUT | |||
| Cold Start | YES, default frequency=50Hz or? settable | YES, default frequency=50Hz or settable | YES, default frequency=50Hz or settable |
| Acceptable Input Voltage | 50%~125%(220VAC/230VAC/240VAC) | 50%~125%(220VAC/230V? AC/240VAC) | 50%~125%(220VAC/230VAC/240VAC) |
| 100% load@80%~125% | 100% load@80%~125% | 100% load@80%~125% | |
| 90% load@70%~80% | 90% load@70%~80% | 90% load@70%~80% | |
| 80% load@60%~70% | 80% load@60%~70% | 80% load@60%~70% | |
| 65% load@50%~60% | 65% load@50%~60% | 65% load@50%~60% | |
| Phase | Three phase in, single phase out | Three phase in, single phase out | Three phase in, single phase out |
| Transfer Voltage Range?? | |||
| Line low transfer | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC | 110VAC/115VAC/120VAC |
| Line low recovery | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC | 116VAC/122VAC/127VAC |
| Line high transfer | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC | 275VAC/288VAC/300VAC |
| Line high recovery | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC | 268VAC/279VAC/291VAC |
| Input Current | |||
| ??? Rating(at nominal input voltage) | 17A | 25.5A | 34A |
| Input Power Factor | ≥0.95 | ≥0.95 | ≥0.95 |
| Input Frequency Range | 40Hz - 70Hz | 40Hz - 70Hz | 40Hz - 70Hz |
| Generator | Support Any Generator | Support Any Generator | Support Any Generator |
| OUTPUT | |||
| Frequency adaptable | Settable | Settable | Settable |
| Power | |||
| ?? Power(KVA) max | 10 | 15 | 20 |
| ??? Power(KW) max | 9 | 13.5 | 18 |
| Output Voltage | |||
| ?? Waveform | Pure sine wave | Pure sine wave | Pure sine wave |
| ??? Nominal voltage | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC |
| ??? Voltage regulation | ± 1 % | ± 1 % | ± 1 % |
| ??? Transient respon |
