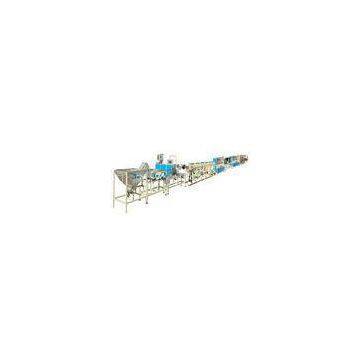

Round Dripper Inlet Drip Irrigation Pipe Extrusion Line For Agricultural Irrigation

Round Dripper Inlet Drip Irrigation Pipe Extrusion Line For Agricultural Irrigation

The round dripper inlet irrigation pipe extrusion line is mechanotronics, with the advantages of:

1) high production efficiency;

2) reasonable structure compact;

3) convenient operation and maintenance

4) long use life etc.

Description:

extrusion, irrigation, drip irrigation, extrusion line, production line, making machine, extrusion machine, pipe line, pipe making machine, pipe extrusion line, pipe production line

Hangzhou POLYTECH Plastic Machinery Co., Ltd, on the base of the original round dripper inlet irrigation pipe, absorbing and digesting the similar advanced technology of production line, developed the third generation extrusion production line. This production line has many advantage, such as high extruding speed, high accuracy of perforating and higher performance with lower cost.?

Specifications:

Applications:

The Round dripper inlet irrigation pipe making machine is mainly used in the production of round drip irrigation pipe.

1, Drip irrigation pipe for water resources and labor shortage area of field crops, orchards, trees and greening.

2, Widely used in greenhouse, greenhouse, open field and greening project.

3, For the poor water quality, anti blocking of greenhouse in the higher value-added economy crop irrigation.

Competitive Advantage:

The Round dripper inlet irrigation pipe extrusion machine has many advantage, such as high extruding speed, high accuracy of perforating and higher performance with lower cost.?

1) It adopts computer system control and touch screen operation, having the characteristics of stable production process, easy operation and high efficient and energy saving.

2) Emitter feeding, choosing and ordering, transferring and inserting, pipe extruding, hole drilling and rolling can be finished synchronously, which has high automation degree.

3) The screw bolt of extruder and barrel are made of top-quality 38CrMoAlA nitriding steel, which surface hardness can reach HV850-1000 after processing by ionitriding. The screw bolt adopts optional design with mixing head in same distance and different depth, the extruded materials are plasticized evenly and pipe surface is smooth.

4) The extruding mold and forming and cooling device are made from special material, having the characteristics of unique structure and stable fixed diameter.

5) The tractor adopts frequency-variable control and can fit for the speed demands of different technological skill. It adjusts the pressure force of caterpillar band automatically by up and down air cylinder, the surface of caterpillar band has rubber protective layer which prevents drip irrigation pipe from clamping and distorting by tractor effectively.

6) The hole-driller adopts mechanical method drilling and is equipped with residue recycling system. It has the characteristics of high-speed drilling, no residue left and stable operation.

7) The line adopts double-station rolling machine, so it has the functions of changing roll without stopping machine. Wiring space, rolling tension and rolling length can be adjusted according to actual needs.

Haul-off machine

Automatic winding machine
