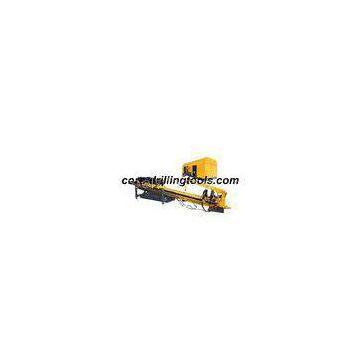

Trenchless Horizontal Directional Drilling Rig For Civic Engineering
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
HDDDrilling Rig Horizontal Directional Drilling Equipment5500KN
-
10 Mpa Horizontal Directional Drilling MachineClamp Shackle Device
-
120 Tons Horizontal Directional Drilling Rig 338kw 1900rpm with 1200KN
-
Rock Drilling HDD Drill Rig , Hydraulic HDDDrilling Machine Track Mounted
-
145KW Diesel Horizontal Directional Drilling Rigs Pipe Pulling Machine
-
HDD Drill Rig , Hydraulic Rotary Drilling Rig 10000 Nm High Torque
Product Details
| Brand Name | Master Core & Core-XZ | Place of Origin | China | |
| Model Number | FDP-1000 |
Product Description
Certification:ISO API
Trenchless Horizontal Directional Drilling Rig For Civic Engineering
Technical Parameters of HDD Drilling Rig FDP-1000
| Feeding (traveling) | |
| Rated feeding / pulling capacity | 990T |
| Max. feeding / pulling capacity | 1045T |
| Feeding / pulling system | rack and pinion |
| Traveling driven by ten gears, 4 shifts stepless adjustable | 36 m/min 1st shift: 36 m/min |
| 18 m/min 2nd shift: 18 m/min | |
| 17 m/min 3rd shift: 17 m/min | |
| 8.5 m/min 4th shift: 8.5 m/min | |
| Rotation of HDD Drilling Rig FDP-1000 | |
| Rotating system | gear transmission, stepless adjustable |
| I shift torque | 190000Nm @50r/min |
| II shift torque | 95000Nm @100r/min |
| Power of HDD Drilling Rig FDP-1000 | |
| Manufacturer | Volvo, Sweden |
| Ratings | 394×4 kw/2100r/min |
| Running state | Feeding / pulling and rotating could achieve the max, performance parameters above. |
| Power for main machine | Ratings 145KW/2100r/min could be chosen by client's demand. |
| Hydraulic system | Close type system for feeding, pulling and rotating, open type load-sensing system for auxiliary circuit. |
| Chassis of HDD Drilling Rig FDP-1000 | |
| 1. Platform type, with hydraulic cylinders 2. On crawlers with traveling speed 1.5Km/h. |
|
| Crane of HDD Drilling Rig FDP-1000 | |
| 6T straight arm crane | |
| Drill rod of HDD Drilling Rig FDP-1000 | |
| The length of drill rod should be within 10.5 meter. | |
| Shackles of HDD Drilling Rig FDP-1000 | |
| Adjustable distance, accurate and reliable screwing-off, automatic centering | |
| max. screwing on torque | 210000Nm |
| max. Screwing off torque | 420000Nm |
| Drilling angle | 8°~ 16° |
| Accessory of HDD Drilling Rig FDP-1000 | |
| Pressure, flow rate, rotating speed etc. could be seen in operation cabin for easier analysis while drilling. | |
