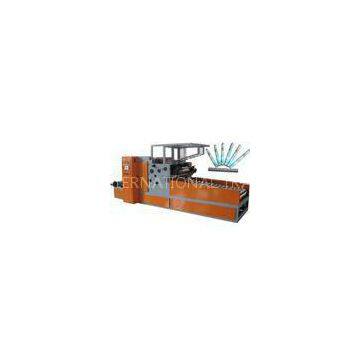

Household Aluminum Foil Slitting Rewinding Machine With PLC Control

Quick Detail:

Description:

The machine is equipment than can once complete gluing, winding length counting and cutting in the production of foil material. It is suitable for processing work of packing materials such as household aluminum foil, etc. It is mainly used in the sectors of refreshing, grilling and cleaning, etc. It can substitute plastic preservative film. It is food hygiene cleaning equipment for businessmen with low investment.

Applications:

1. The complete machine adopts domestic PLC control and safety & reliability.
2. In service, material receiving, gluing, winding and cutting, etc. are all automation control.
3. The quantization gluing is applicable for coating high viscosity glue.
4. Winding adopts constant speed control.
5. Squierrelcage operation adopts servo control, exact positioning without accumulated error.
6. Rolling small shaft delivery mechanism and exact safety.
7. Wallboard structure and smooth stabilization.
8. Constant tension unwinding and winding stabilization.

Specifications:

Thickness of raw material:0.01mm-0.02mm

Raw material width:250-600mm

Maximum unwinding diameter:Φ600mm

Inner diameter of raw material roll core:Φ75mm

Inner diameter of finished product roll core:Φ24mm,Φ30mm and Φ38mm

Cutting length of roll:3m-300m

Production efficiency:Calculation with 5m of roll cutting length, 5-10 rolls/min 100m/min

Magnetic powder brake:25N.M

Magnetic powder clutch:25N.M

Complete machine power:4KW

Overall dimension:,600mm×1,100mm×1,820mm

Complete machine weight:About 1,500kg
