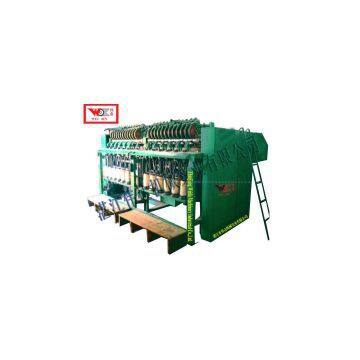

24 Spindle Spinning Machine
- 1000000 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Work Principle：
After the ASFJ341 drawing machine producing yarn, uses FL-24 spinning machine for drafting and combing fiber to be straight and horizontal, remove the impurity more and supply the certain counts high-count & spun yarn.
FL-24 Spindle Spinning Machine uses double head screw comb case fork cover flyer, frequency control of motor speed, double screws, worm gear promotion & demotion etc., which is ideal equipment for making high count sisal yarn.
In order to give full play to the machine feature, it should read instruction before starting, pay attention on five parts as follow:
1. Fiber itself machinery physical feature, fiber grade, moisture regain choose and control.
2. Yarn must be produced by LJ whole set equipment and ASFJ341 equipment.
3. The reasonable maintenance and correct operation.
4. Each technologic data reasonable choose and overall process management strictly.
5. Yarn degree of uniformity quality affect end breakage rate of yarn key point.
Technical Data:
Main Type Single Spindle Spindle Quantity 24 spindle Arrangement Type double row spindle Drafting multiple 9.43－19.06 Count 1 Nm Feeding sisal strip ASFJ341 or 441 drawing machine Feeding Type Single sisal strip Feeding strip weight 16.4-30 g/meter Twist rate 45-120 twist/meter Twist direction Z Spindle Wing Speed 1800 r/min Main Motor Y160M P=11Kw Overall Dimension 3200×2500×1700mm
