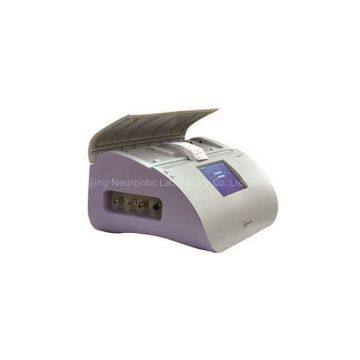

Filter Integrity Tester

Integtest ^?  Serials Integrity Tester are designed for testing integrity of filters and filter systems . The test meet to verify the sterilizing filter in the FDA, the State Pharmacopoeia and GMP specification requirements. The V6.0 Integrity Tester is an easy-to-use, portable, fully automated integrity test system, which performs bubble point, diffusion, enhanced bubble point, and water-based test for hydrophobic filters on a wide range of filters. The first domestic launch of integrity test for ultrafiltration membrane, to meet different customer needs.

Utility Range:

l Disc Membrane:Φ25mm-Φ300mm;

l Standard Cartridge:2.5″- 40″

l Capsule & Mini Cartridge

l Air filter test :2.5″- 40″

l Ultrafiltration membrane

Brief Description:

1. Automatic filter infiltration procedures to ensure filter fully infiltration, and it will launch the flow test, will not affect the downstream aseptic, to meet the requirements of on-site testing.

2. Advanced data processing technology: the instrument acquisition of the changing apparent diffusion flow and data flow in real-time for analysis diffusion, viscous flow model, which can accurately identify the filter bubble point value so that the membrane filter bubble point test results have a good relevance with real bacterial interception test.

3. The instrument get the actual diffusion flow value by measuring the filter upstream volume, and can test water-based test for hydrophobic filters on-site so that solving the problem of residual organic solution invasion.

4. With large capacity data storage, the instrument can plug an external SD card storage test results and curve, and can be connected to the PC to achieve unlimited storage.

5. Instrument uses advanced algorithms make the instrument more stable and more accurate which is one percent.

6. The gas inlet unit of the instrument adopts full automatic digital control, and the whole test process does not need adjust the gas inlet valve manually.

7. we designed specially for the large capacity filter, which ensures that the accuracy will not change when the large capacity filter testing.

8. The core part of the instrument are imported abroad, and we considered the safety of the operation details when we designed it, and all aspects safety of the operations process handled under the premise of ensuring the basic electrical safety and mechanical safety.

9. With English letter and digital entry, the instrument is convenient for customers to directly enter the different batch number, compliance with the new guidelines of GMP.

10. Compatibility: built-in parameters being of good compatibility with Millipore, Sartorius and Pall.
