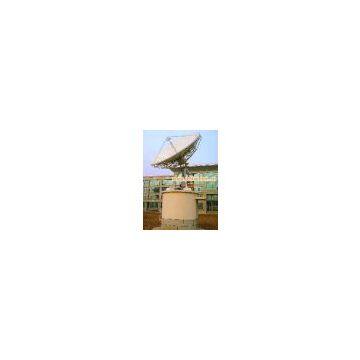

Probecom 4.5m KU band Satellite antenna

Probecom 4.5M KU band satellite antenna Features:
Meets or Exceeds CCIR 580 and INTELSAT Requirements
High G/T, Excellent Pattern Characteristics
Thermal Spaying Zinc Steel Ground Mount Assembly
C-band Antenna Operating in 800MHz Bandwidth Option
2-port, 3-port or 4-port Linear/Circular Feed
Field Changeable Feed System, Switchable Circular to Linear C-band
Antenna Az 0-360deg Continuous Pointing Range

4.5m C/Ku band earth station antenna specification
ELECTRICAL SPECIFICATION:
Operating Frequency, GHz
C-Band:Rx(3.625-4.2) Tx(5.85-6.425)
Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)
Polarization: Linear/ Circular
Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements
MECHANICAL SPECIFICATION:
Azimuth ±60° (Continuous)
Elevation 0°-90°(Continuous)
Polarization 180°(Continuous)
Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc
ENVIRONMENTAL SPECIFICATION:
Operational Wind 72km/h Gusting to 97km/h
Survival Wind 216km/h
Temperature - 40°C - + 60°C
Relative Humidity 100%
Solar Radiation 1135Kcal/ h/ m2
Seismic (Survival) 0.3g (H), 0.15g (V)
