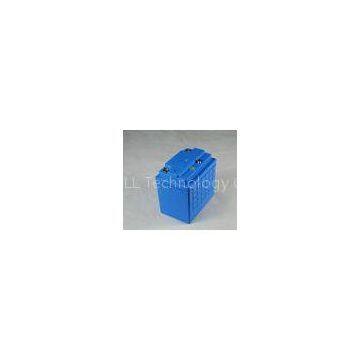

High Capacity LiFePO4 Lithium Battery With SMbus , 24V 20AH

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OCELL		Place of Origin	China
Model Number	IFM24-200E3

Product Description

Delivery Time:20 days
Certification:UN38.3, CE, ROHS

?
High Capacity LiFePO4 Lithium Battery With SMbus , 24V 20AH
?
24V 20AH LiFePO4 battery pacK
wireless monitoring equipment, Medical instrument equipment, instruments, LED lamps and lanterns,
?
?
Manufacture 24V 20AH LiFePO4 battery pack with SMbus
?
Voltage: 24V
Capacity: 20AH
Weight: 5.6Kg
Dimension: 130*183*195mm
Max charge current: 38A (10A recommended)
Over current: 40A
?
?
Specification form:
?

NO.	Items	Specifications
1	Charge voltage	29.3V
2	Number of series	8S6P
3	Nominal voltage	25.6V
4	Nominal capacity	20AH(0.2C discharge)
5	Charge current	standard charging: 0.2C
6	Rapid charge: 0.5C
7	Charging time	standard charging:6.0 hours
8	rapid charge: 3.0 hours
9	Max charge current	10A
10	Max continuous discharge current	38A
11	Discharge cut-off voltage	20.0V
12	Operating temperature	charging: 0°C-45°C
	discharging: -10°C-45°C

?
?
New Function!
1. SMbus to know more information for battery status
2. Capacity indicator available
3. Fuse for duplicate protection
?
?
Application:
Communication: back-up electric supply, interphone
Vehicles: electric bicycle, golf car, electric wheelchair
Power tools: electric cropper, electric drill, electric saw, electric hammer.
Illuminate devices: solar battery, miner lamp, solar street lamp, emergency light, and electric torch, LED lamps and lanterns, traffic signs,
Others: toy, small home appliance,?wireless monitoring equipment, Medical instrument equipment, toys, etc
?
?
Features:
?

? Ultra light. One fifth the weight of lead-acid batteries on average

? Twice to four times the service life of lead-acid batteries

? Drop-in replacement for your OEM battery

? Fast recharge rate

? No explosive gasses during charge, no lead, no acid

? Environmentally friendly
