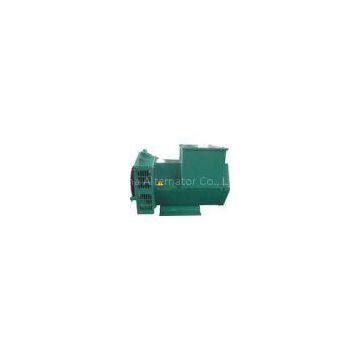

40kw / 50kva 1800rpm Self-excited Three Phase AC Generator IP23 For Generator Set

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Werna		Place of Origin	China
Model Number	WR184J

Product Description

Delivery Time:Within 10 days
Certification:CE,ISO9001,SASO

40kw /?50kva 1800rpm Self-excited Three Phase AC Generator IP23 For Generator Set

Quick detail:

Name	ALTERNATOR	Brand Name	WERNA
Color	According to the international standard color card	Feature	AC brushless synchronous excitation alternator
Power	40KW	Certificate	CE,ISO9001,SASO

?
Specication:

manufacture	Wuxi City ,Jiangsu Prov ,China making alternators
Output type	AC Three Phase Brushless generator
Terminal	12 / 6 Wire
Rated Voltage	208V~480V
Frequency	60Hz
Speed	1800RPM
Mounting Dimension	Stamford Type
Winding? pitch	2/3 pitch
Excitation	Brushless, self-excited, synchrous
Insulation Class	H

Technical Datas

Werna?Type	3Phase?60Hz?1800rpm	Shaft?length	Copper?total?weight	Core?length
?	208V~480V	?	?	?
?	KVA	KW	mm	kgs	mm
WR164A	10.2	8.2	373.16	9.98	65
WR164B	13.8	11	373.16	11.18	80
WR164C	16.9	13.5	400.16	11.6	100
WR164D	20.2	16	400.16	11.88	115
WR184E	28.8	23	440.16	14.72	150
WR184F	34.4	27.5	530.16	16.2	190
WR184G	37.5	30	530.16	17.8	230
WR184H	46.9	37.5	673.3	19.21	255
WR184J	50	40	673.3	20.48	285

Description:
Frequency And Voltage
50Hz or 60Hz as per customer\'s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
?
Insulation and Protection
Insulation: H, Protection: IP23
?IP23 is for optional but the rated power will decrease 5%.
?
?Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
?
?Winding
All generator stators are wound to 2/3 pitch.?
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost ever
