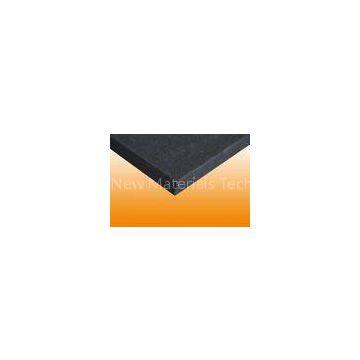

Black Mould Proof Fabric Wrapped Wall Panels Heat Insulation For Meeting Room 25mm

Black Mould Proof Fabric Wrapped Wall Panels Heat Insulation For Meeting Room 25mm

Dimensions can be ordered upon customer\'s requests.?

Ecopan fiberglass panel is a new and special green building material. It has remarkable advantages compared with other mineral wool panels. Here are some for your reference.

Quick Detail:

No sagging, warpping or delaminating

Green building material

Excellent sound absorption

Various designs and colors for decorative fabric are available.

Dimensionally stable under high temperature or humidity.

Remarkable thermal insulation property, energy-saving material

Easily install and adjust

Applications:

halls, classrooms, offices, shopping centers, etc.

Technical Data

Material: torrefaction compounded high density fiberglass wool

Face: special painting laminated with decorative fiberglass tissue

Color: white, black,green, golden,bule,pink and so on,others to order

Fire-resistant: Basic board: Class A, finished board: Class B2. non-combustible according to GB9624-1997, tested by china’s authority inspection center

Thermal-resistant: ≥0.4(m2·k/w)

Humidity: dimensionally stable with RH up to 95％ at 40℃, no sagging, warpping or delaminating.

Moisture rate: ≤1％(JC/T670-2005)

Enviromental impact: tiles and packings are fully recyclable.

Safety: limit of radionuclides in building materials, specific activity of 226Ra: Ira≤1.0, specific activity of 226 Ra, 232Th, 40K: Ir≤1.3

Description

The tiles are manufactured from high density fiberglass wool. The visible side is warpped with decorative fabric and the back is covered with normal fiberglass tissue. The four edges can be square or bevel.

Application

It is recommended that the tiles be installed to the opposite two walls to control the echo of the surroundings. The tiles are widely used in hotels, meetings rooms, music rooms, etc., where have special request for sound absorption.

Dimensions can be ordered upon customer’s requests.

600*600*25mm

600*1200*25mm

600*2700*25mm

Competitive Advantage:

Fire-resistant: As fiberglass consists of rock fibers, which are combustible. So both basic board and decorative facing of Ecopan panel has achieved Class A fire-resistant property, which has tested by National Authority of China.

Thermal-insulation: Block off the colds outdoor and prevent hear from spreading in or out from indoors. It can make energy-saving and also to create a quiet and comfortable environment.

Humidity: Dimensionally stable in high humidity, no sagging, warpping or delaminating compared with normal wet-craft made mineral wool acoustical panel.

Elegant: Standard quiet white facing, personalized designs will give you a fashionable and comfortable visual feeling. Also other various colors can be ordered.

Cleanability: Special painting on the facing make Ecopan fiberglass panel can be longtime used and seldom absorb dust or Vacuum. You can clean the face with eight wet or dry mop.

Environmental: Fungi and stains resistant, no pollution. It is a new kind of green and healthy building material. Fully recyclable.

Safety and Convenience: No safeguards are needed for the insulation. The working site will still keep clean and tidy as no fibers will fall off. Either exposed or concealed grids are available for the installation. Because of the light weight, the panels are widely used in constructions with large spans in space, such as gymnasiums, exhibition halls, shopping centers, etc. They are easy to trim and install.

Installation method:

Place top edge on set line. Carefully swing bottom edge to meet impaler heads. With the panel resting on the impaler darts, apply in towards wall and downward pressure.

Test Report:

1)The Specific Activity of Radioactive Nuclide:
226RA is undetected;
232Th is undetected;
40K is 28.3Bq/kg

2)Visible Reflectance:
Visible Reflectance result is 0.89?

3)Sound absorption coefficient:
NRC=0.85??????
According to GB/T16731-1997 \"The gradation of sound absorption property for absorbent productions\",the absorption properties of tested acoustic structure is 1st class.
