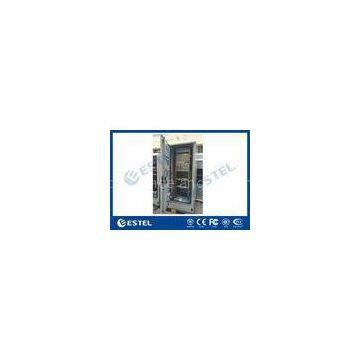

Standard Industrial Outdoor Telecom Cabinet , Outdoor Electrical Cabinet With Rectifier System
- 0 Metric Ton / Metric Tons per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Outdoor Rack Mount Enclosure Street Cabinets Telecoms For Transmission Switching Station
-
Custom Galvanized Steel Outdoor Power Enclosure Equipment Rack Cabinet
-
Three Bays Base Station Cabinet Outdoor Telecom Enclosure Cutomized ET24080200
-
Durable Telecom Cabinets Outdoor Network Enclosure High Precision DDTE070
-
4G System / Communication Outdoor Telecom Cabinet Anti Corrosion Powder Coating
-
AC110V Telecom Outdoor Cabinet Air Conditioner Door Mounted IP55
Product Details
| Brand Name | ESTEL | Place of Origin | China | |
| Model Number | ET7575175-EQ |
Product Description
Certification:ISO9001, CE, 3C, FCC, TLC, IP55
Standard Industrial Outdoor Telecom Cabinet , Outdoor Electrical Cabinet With Rectifier System
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) |
External Size H×W×D 1750×750×750mm Internal Size H×W×D 1450×650×650mm (19”, 32U) |
|
Brand Name: ESTEL |
Structure: double wall, with insulation, sandwich structure |
|
Model Number:?ET7575175-EQ |
Cabinet Layout: one compartment, for installing 19” equipment |
|
Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: DC48V Air Conditioner and DC48V Fans |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU, rectifier system, environment monitoring system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: |
L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H×W×D 1750×750×750mm; Internal Dimension H×W×D 1450×650×650mm. |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door; with three point lock for outdoor cabinet (support padlock) | |
| Material |
Sandwich structure: (1) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (2) Cabinet door and base: outer plate: 1.5mm galvanized steel, inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (3) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.) + 1.0mm galvanized steel. |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | DC48V Air conditioner and DC48V fan |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
