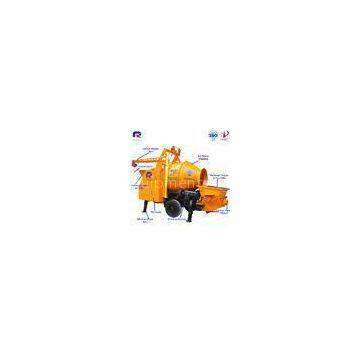

JBT40-P1 Concrete Mixer Gears Pump From China, 2016 Concrete Mixer Machine Pump, Upgrade Concrete mi
- T/T L/C D/P D/A
- 7 days
You May Like
-
15m3/h Mobile Concrete Mixer With Pump, Mini Small Concrete Pump, Top Seller Concrete Mixer Pump Wit
-
Pully JBT40-P1 2016 Portable Concrete Mixer Pump, Barrow Concrete Mixer Pump, Small Concrete Mixer p
-
2016 Mini Cement Mixers With Good Price, High Quality Concrete Mixer Pump, Concrete Mixer With 2 Whe
-
Price of Mini Concrete Mixer Pump for Sale, Electric Mini Concrete Mixer Pump, Concrete Mixer Pump i
-
Price of Electric Portable Concrete Mixer Pump With High Quality, Self Loading Concrete Mixer Pump w
-
Good Service Electric Small Portable Concrete Mixer Pump With High Quality, Small Towable Concrete m
Product Details
| Brand Name | Pully | Place of Origin | China | |
| Model Number | JBT40-P1 |
Product Description
Certification:ISO/CE/BV/ROHS
JBT40-P1 concrete mixer gears pump from China, 2016 concrete mixer machine pump, upgrade concrete mixer pump in Pakistan
Production Specifications
| Item | Unit | JBT40-A | |
| Pumping system | Theoretic output | m3/h | 40 |
| Theoretic outlet pressure | Mpa | 7 | |
| Theoretic delivery height | m | 50 | |
| Theoretic delivery distance | m | 300 | |
| Pumping frequency | times/min | 15 | |
| Distribution valve type | ? | S pipe valve | |
|
Concrete cylinder spec. (inner dia. x stroke) |
mm | Φ200×1000 | |
|
Oil cylinder spec. (outer dia. x inner dia. x stroke) |
mm | Φ100×Φ70×1000 | |
| Outlet diameter | mm | Φ200 | |
| Delivery pipe inner diameter | mm | Φ125 | |
| Hopper volume | L | 600 | |
| Rated voltage | V | ~380 | |
| Main motor power | Kw | 37 | |
| Vibrating motor power | Kw | 0.75 | |
| Hydraulic circuit type | ? | open | |
| Main system max. oil pressure | MPa | 24 | |
| Distributing system oil pressure | MPa | 16 | |
| Mixing system oil pressure | MPa | 9 | |
| Max. Mixing speed | r/min | 24 | |
| Oil tank volume | L | 200 | |
| Max. aggregate diameter | mm | ≤40 | |
| Concrete slump scope | mm | 80~200 | |
| Outer dimension (L*W*H) | mm | 4960×2100×2500 | |
| Weight | Kg | 5300 | |
| Mixing system | Mixing volume per time | m3/time | 0.45 |
| Mixing volume per hour | m3/h | 18 | |
| Mixing motor power | Kw | 4×2 | |
| Lifting motor power | Kw | 5.5 | |
| Water pump power | Kw | 0.75 | |
| Vibrating motor power | Kw | 0.55 | |
Production Description
1. Power system
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted.
The main power could be adjusted by the user
2. Electronic control system
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
The control mode: manual operation and wireless remote control
Humanity and intelligent electronic control system optimizes the person-machine interface.8-digital pumping time accumulation timer provides exact data for the user, Automatic anti-pump function and optimized program design. Automatic trouble monitoring function.
3. Hydraulic system
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.
A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete. The concrete is delivered freely.
4. Pumping system
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
Reducing design of the hopper could release the reducing pressure of the concrete into
