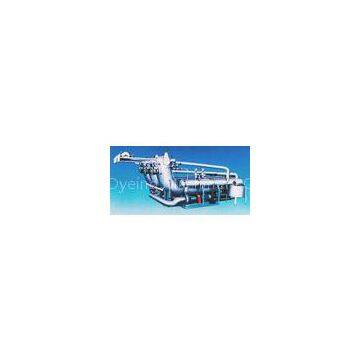

Cloth Automatic Dyeing Machine , High Pressure Loose Stock Dyeing Machine

Brand Name	HUAYANG		Place of Origin	China
Model Number	SME1000A-III

Delivery Time:45 work days
Certification:TS2232352-2019

Cloth Automatic Dyeing Machine , High Pressure Loose Stock Dyeing Machine

Intelligent water system

Non-stop discharge dyeing technology Time-saving technology Enhance cost-effectiveness Improve the utilization rate standard structure Machines all contact with the dye.SUS316L parts imported or quality stainless steel SUS321 Reserve cloth bottom of the high-strength Teflon Efficient stainless steel circulation pump,frequency soft-start Adjustable dual-nozzle Digital tachometer with variable speed boost motor , driven by frequency converter The large capacity charging bucket with injection pump and agitator Design program about the water , drainage , and overflow wash water High efficiency heat exchanger and filter Automatic control water gauge Spray cleaning device The cloth stick All stainless steel working platform

Advantages

Very low bath ratio:1:6-7 Reduce wastewater emissions Increase the dyeing cycles Color to the fabric?with a more uniform Save dyes , additives , water , steam and electricity Cloth speed can be as high as 350m/min Fabric and?dye to exchange more fully Fabric is no creases

The fine fabric diffusion effect

Fabric running relaxation ,no creases The finished product processing effect is good

Heavy loads

Reduce chromatic aberrations Reduce the number needed to dye the machine

Rapid cycling system

Increase the dyeing cycles Fabric and dye to exchange more fully Color to the fabric with a more uniform

Engineering data

maximum working temperature:140℃ maximum working pressure:0.38Mpa Warming rate: 25℃ to 100℃ average 5℃/min ;100℃ to 130℃ an average of 2.5℃/min. Cooling rat:130℃ to 100℃ average 3℃/min ;100℃ to 85℃ average 2℃/min.

Optional accessories

The second tank Measuring the water Quantitative injection Program the second enters the water , the second drainage

SPECIFICATIONS

Model	No. of Tubes	Max. capacity(kg)	Total Power(kw)	Size L×W×H(mm)
SME1000A-I	1	400-500	18.5	9750×2200×3350
SME1000A -II	2	800-1000	37	9750×3400×3350
SME1000A-III	3	1200-1500	55	9750×4960×3350
SME1000A-IV	4	1600-2000	75	9750×6000×3350
