Small Plastic Injection Molding Products , RAL 9011 White POM Spacer Bush 10 X 15mm

Small Plastic Injection Molding Products , RAL 9011 White POM Spacer Bush 10 X 15mm

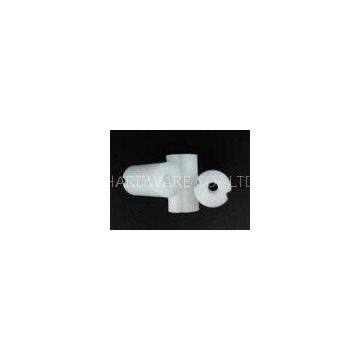

Plastic injection molding spacer bush with white color RAL 9011 , it is made of POM with Copolymerized type for communication device . POM injection molding spacer bush has a groove on both side and a through threaded hole in centre .

Spacer bush injection molding parts are made from engineering POM that with

High crystallinity

High density

High melting point

Perfect comprehensive performances

Physical Performance

Mechanical Property

Thermal Performance

Dimensions for POM injection molding Spacer Bush

Tolerance for POM injection molding Spacer Bush

Based on ISO 2768 standard MT 6

Unit : mm

Characteristics for POM injection molding Spacer Bush

High mechanical strength

Tensile strength can be up 50.5MPa . close to metal properties . and only a tiny change on mechanical strength even working temperature has a large change .

High stiffness

The maximum specific stiffness for POM can be up to 2650MP

Good wear resistant

Wear resistant strength still keeps 35MPa or so even item is put 10 J variable load . it is best compared to items that with PA,ABS,HPVC,PS,PC

Resistant impact

POM has good impact resistance but inferior to ABS and PC , Impact performance will be down 90% or so if there is breaking on or in product .

Self-lubricant

POM parts with F4 , C ,MoS2 ,PE and lubricant elements that improve self-lubricant performance .

Stability in dimensions

POM part with good tensile strength and hardness that not easy to be deformed and broken .

Resistant Organic solvent

POM parts are resistant for hydrocarbon ,alcohol ,ether ,aldehyde , gasoline ,lubricant and Weak Alkalis .

Small creep properties

Creep property rate is 2.3% or so in 20℃,21MPa,3000h . and nearly not be effected by temperature

Good insulation

POM items nearly not be effected by temperature and humidity on insulation . insulation is related with the thickness of items , eg when thickness is 0.127mm insulation is 82.7kV/mm,thickness is 1.88mmi insulation is 23.6kV/mm

Low water absorption

Packing for POM injection molding Spacer Bush

1 , 100 pcs each bag and 10 bags each carton

2 , 500 pcs in bulk for common packing

3 , Customized packages

RFQs

1 , What are materials for plastic injection molding spacer bush
