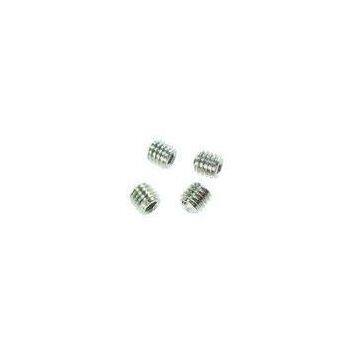

M5 x 10mm Stainless Steel Grub Screws Hexagonal Socket Cup Point DIN 916

M5 x 10mm ?Stainless Steel Grub Screws Hexagonal Socket Cup Point DIN 916

Stainless steel grub screws have hexagonal socket in one end and another end are cup shape that with a little concave for locating purpose .

Stainless steel grub screws are with full machine threads and no head design , hex socket support driving place for hex wrench tool that controls screw in or screw out .

Material

Grub screws are made of stainless steel grade 304 , no magnet and no burrs and eco-friendly .

Physical Performance

Mechanical Properties

Core hardness : HV 250

Case hardness : HV700

Min torque : 2.3 N.m ( property class 20 H )

Tensile strength σb (MPa) : 650

Yield Strength σs (MPa) : 320

Elongation δ5 (%) : 35

Reduction of area ψ (%) : 45

Specifications

Standard grub screws normally based on DIN and ISO and BSW as well .

M5 X 20 standard grub screws

Standard : DIN 916

Material : SS 304

Unit : mm

Other specifications for grub screws based on?DIN 916 / ISO 4029
.

Finish

Stainless steel grub screws are polished and with roughness R6.0

① Bright appearance

② No any burrs

③ Corrosion resistance

Applications

Stainless steel grub screws with a vast demands for various fields in industry .

★ Aerospace

★ Cars

★ Vessel

★ Household applicanes

★ Machines

★ Decoration

★ Toys

★ Electric items

★ Official items

★ Furniture

★ Communication

★ Food industry

★ Medical apparatus

Characteristics

▲ Wide versatility

▲ Top material

▲ Quick installation

▲ Convenient operation

▲ Simple deign

▲ Recylable

▲ Eco-friendly

▲ Standard Sizes

Installations

① Make sure objects with suitable threaded hole that as size of grub screw .

② Insert grub screw into hole

③ Drive grub screw with a L wrench and rotate it to the end .
