Ceramic Plants PVC Glazed Roof Tile Making Machine 880mm / 1040mm Width 40
- T/T L/C D/P D/A
- 7 days
You May Like
-
Two Layer Co - Extrusion Glazed Tile Roll Forming Machine For Roof 880MM Width
-
PVC / ASA Glazed Roof Tile Making Machine For Mobile Home Roofing PLC Control
-
Corrosion Resistant Roof Tile Making Machine 1040mm Plastic Extruder Machinery
-
PVC Plastic Glazed Roofing Tile Making Machine , House Roof Sheet Forming Machine
-
PVC Roof Sheet / Glazed Tile Forming Machine 380V 50Hz Convenient Operation
-
PMMA Roof Tile Roll Forming Machine PVC Roof Sheet Making Machine 350 kgh 880mm Width
Product Details
| Brand Name | ACEMIEN | Place of Origin | China | |
| Model Number | SJZ80-BF880 |
Product Description
Certification:CE
PVC Glazed Roof Tile Making Machine / Tile Forming Machine 880mm / 1040mm Width For Ceramic Plants
?
Specificitions-pvc plastic glazed tile:
1. Energy-saving, soundproof
2. Impact resistance, low temperature
3. Lasting color,no deformation
4. Light weight, insulation, easy to install
5. Anti-corrosion, fire-resistant
Product application:
Product are used for Flat-to-sloping projects , villas, mobile homes, garden pavilion roof, farmers markets, shopping malls, residential areas, the new rural construction of luxury villas, awnings and antique buildings.
?
Product cost and selling price:
| Material | Surface layer | Bottom layer |
| Name | ASA (Granule) | Mixed by PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin |
| Cost | USD 3400/1000kg, Need 100g/ square meter | USD300-USD500/1000kg |
|
? |
3.5-5.5kg/square meter | |
| Thickness | 2mm,2.5mm,3mm(2-3mm adjustable) | |
| Profit | Product cost USD 2-USD 3.5/ square meter | Profit at USD1.5/ square meter even more |
?
Detailed instruction:
Raw material & Final product:
| Raw material & formulation |
Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin. |
| Description final product & Output |

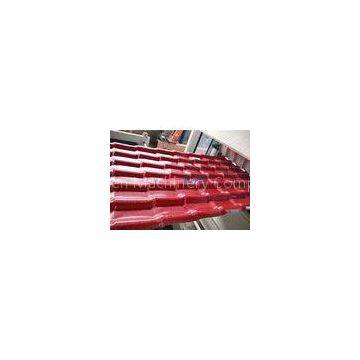

Two layers PVC+ASA Co-extrusion Glazed tile; |
| Final product |
Main tile:1set |
?
Work condition (Provide by customer)
| Warehouse/Workshop |
Machine Dimension (M*M*M): 25(Length)×5(width) ×3.5 (Height) |
| Temperature & Humidity | ≤40℃, ≤95% |
| Power supply | 3-phase, 380 V, 50 Hz(or customized) |
| Wire/cables: | Wires/cables from power supply to control cabinet of this production line; |
| Cooling Water hose/pipe: | Water supply to machines and pools |
| Lubrication oil: | Sinopec, Exxon mobile |
| Compressor | necessary |
?
Energy consumption
| Installation power |
Total 284.75KW,Actual consumption about 70% |
| Cooling Water | ≤20℃, ≥0.3Mpa, ～5-6tons/hr |
| Compressed air | 0.3m3/min, ＞0.6Mpa |
| Manpower | 3 Persons/shift |
?
?
Machine list:
| No. | Machine | Qty. | ? |
| 1 | Screw loader for extruder | 1set |
Glazed tile extrusion line |
| 2 | Conical twin-screw extruder(PVC) | 1set | |
| 3 | Vacuum loader and drying hopper | 1set | |
| 4 | Single screw extruder(ASA) | 1set | |
| 5 | Extrusion mould and distributor | 1set | |
| 6 | Embossing roller | 1set | |
| 7 | Temperature controller | 1set | |
| 8 | Glazed-tile forming machine | 1set | |
| 9 | Cutter | 1set | |
| 10 | Stacker | 1set | |
| 11 | Ridge tile Oven | 1set | |
| 12 | Ridge tile Forming machine and ridge tile mould | 4set | |
| ? | ? | ? | ? |
| 13 | Screw loader for Mixer | 1set | Auxiliary equipment |
| 14 | Mixer unit | 1set | |
| 15 | Crusher | 1set | |
| 16 | Pulverizer | 1set |
?
Work flow:
Mixer for bottom layer(PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin)
?
Extrusion process
