High Speed Pipe Production Line , 4 Spindle Plumbing Braided Hose Machine

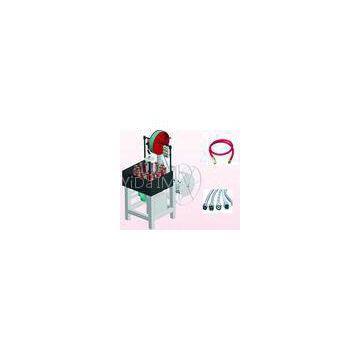

ZYD-121 24Spindle Plumbing Braided Hose Machine

Description:

vertical automatic hose braiding machine series(ZYD-90 110 114 130 140 160 200 300)is a new set of automatic braiding equipment which is design and improved based on digesting and absorbing foreign advanced technology. The machine is widely used in company which produce wires .cable .weaved rubber tubes which endure high pressure .weaved rubber water hose .weaved ropes.tubes used in cars and motorebikes and rubber &plastic tubes in the sprayer teflon hose high pressure. The machine has the fellowing features:

1) high automatic extent broken ,empty bobbin or no tube automatic machine self-closed

2) adopt adjustable speed to accommodate pitch ,don’t need to change gear

3) High productived efficiency production three times than present usual machine per hour ,the max production rach to 98m/hour

4) Low noise ,transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment.

5) Easy maintenance ,transmission flexible structure easy install and remove

6) Spindle adopt elastic and adjustable equipment ,depentable position,easy,convenient and flexible install bobbin

7) Small abrasion and long using life take key part used excellent material adopt heat treatment and lubricant equipment.

Specification:

Braiding Material :

· Stainless steel wire (0.10-0.35mm)

· Nylon wire

· Alumium wire (0.15-0.30mm)

· Carbon steel

· Polyester yarn

· Cotton yarn

· Aramid fiber

Technical Features

· Core centralizing unit

· Individual carrier tension control

· Operating speeds:

. 16 Carrier 55 rpm

. 24 Carrier 50 rpm

. 36 Carrier 36 rpm

. 48 Carrier 20 rpm

· Gear driven take-off for accurate control

· Braid patterns (2 over 2, and 1 over 1)

· Inverter motor drive for controlled acceleration and deceleration

· Adjustable traverse mechanism to accommodate reel variation

· Digital production counter

· Options

· Empty bobbin detector

· Central lubrication system (recommended)

· Enhanced Sound Enclosure

· Keel lubricator (recommended)

· Advance display, variable speed

· Longitudinal tape applicator

· Motor driven capstan(speed reducer capstan )

· Single deck( Double Deck) Braiding System

Application

· Shielding for wire and cable products

· Sanitary hose (Plumbing hose) product

· Teflon hose

· Low pressure hose and high pressure hose

· Irony steam hose

· Refrigerating fluid charge hose

. Hydraulic hose
