IP ASI AVC H.264 HD Encoder Modulator Digital Headend Equipment , RF ATSC Encoder Modulator

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SFT3542 1*SDI to ATSC

Delivery Time:About 7 days
Certification:CE|ISO|RoSH

IP ASI AVC H.264 HD Encoder Modulator Digital Headend Equipment , RF ATSC Encoder Modulator

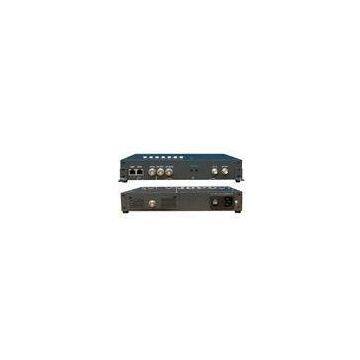

SFT3542 WALL Mounting Digital Headend Equipment,1HD-SDI 1 ASI and 1RF input to RF ATSC Encoder Modulator

Quick Detail:

Modular design AVC H.264 HD encoding MPEG1 Layer II Audio 1*HD-SDI in, 1* ASI in, 1*RF in RF ATSC out LCN support (Logical Channel Number) Excellent modulation quality MER≥42dB RF Frequency range 30Mhz~960Mhz LCD window, Remote control and firmware Updates via web/Ethernet Lowest cost per channel --- breakthrough price?? ??

Description:

SFT3542 1*SDI to ATSC encoder & modulator is a device integrated with MPEG2/AVC H.264 encoding and ATSC modulation to convert HD/SD SDI signals to ATSC RF out in the frequency range of 30~960MHz. It has equipped with 1 channel HD SDI input and 1ASI input.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by an ATSC standard TV, ATSC STB and etc.

The device can be used in public places such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… Besides, it’s a good choice for bars to offer HD sports channels, for VIP entertainment channels, and more.

Specifications:

Input

1x SDI input (HDMI/CVBS/RF/…/ optional)

1×ASI input, BNC interface

Encoding Section

Video

Encoding	AVC/H.264 High Profile Level 4.0 (HD) AVC/H.264 High Profile Level 3.0 (SD)
Input	HD SDI*1
Resolution	1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i,?????????????????????? 1280*720_60p, 1280*720_50P???????????????????? 720*480_60i, 720*576_50i

Audio

Encoding	MPEG1 Layer II(1*Stereo or 2*mono)
Sample rate	48KHz
Bit rate	64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps

ATSC Modulator Section

Standard	ATSC A/53
Constellation	8 VSB
RF Output Level	26~-10dbm (81~97dbμV), 0.1db step
MER	≥42dB
RF frequency	30~960MHz, 1KHz step

Stream Output

1*RF

2×ASI outputs, BNC interface

MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)

Interface

Local interface	LCD + control buttons
Remote management	Web NMS
Language	English

General

Power supply	AC 100V~240V
Dimensions	267*245*44.5mm
Weight	2.5 kgs
Operation temperature	0~45℃
