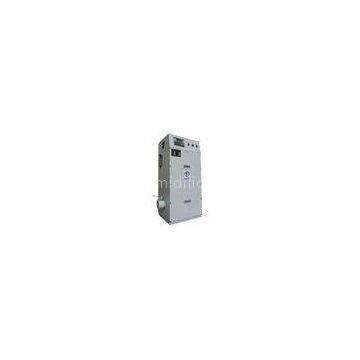

Mobile Air Humidity Control Industrial Desiccant Dehumidifier Equipment 300 m3/h

Brand Name	Fuda		Place of Origin	China
Model Number	ZCS-300

Delivery Time:45 days
Certification:ISO9001:2008

Mobile Air Humidity Control Industrial Desiccant Dehumidifier Equipment 300 m3/h

Quick Detail:

Style: Wheel adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel Wheel

Rated Air Flow: 300m3 /h

Rated Dehumidification Capacity: 2kg/h

Dehumidifier Quality: High

Installed Power: 3.385kw

Voltage: 380V, 3 phase, 50Hz or as customer required

Certification: ISO9001:2008???

Features: Economical, energy-saving

Usage: Air humidity control

General Description:

ZCS-300 Moveable Dehumidifying Equipment removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.

In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.

This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.

Applications:

War Industry, Scientific Research, Electric Power Transportation Lithium Battery Industry, Biotechnology Pharmaceutical Industry Chemical, Daily Chemical Industry, Food Beverage Industry Safety Glazing Material Industry, Tyre and Rubber Industry Medical Instrument, Vegetables Frozen, Precise Instrument Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Competitive Advantage:

Good dehumidifying capacity Compact structure, Stability and reliability, Easy operation and maintenance

Specifications:

Main Parameters
Model	ZCS-300
Process Airflow	300 m3/h
Regeneration Airflow	100 m3/h
Rated Dehumidification Capacity	2 kg/h
Regeneration Power	3 kw
Power of Process Fan	0.26 kw
Power of Regeneration Fan	0.1 kw
Power of Driving Motor	0.025 kw
Installed Power	3.385 kw
Dimension	550×440×1200 mm
Weight	80 kgs
