Home > Products > Victory Alternator > 5KVA - 1500KVA YHG Three - Phase A.C. Synchronous Brushless Generator

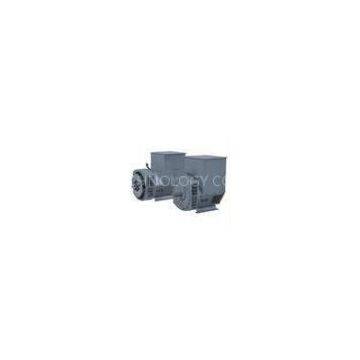

5KVA - 1500KVA YHG Three - Phase A.C. Synchronous Brushless Generator
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
400A, 630A, 800A, 1000A Automatic Transfer Switch For Generator Part
-
250A, 400A, 630A, 800A Automatic Transfer Switch Generator Parts ATS-N
-
Manual / Remote Start Low Oil Pressure Module Generator Spare Parts DSE702
-
Automatic Mains (Utility) Failure Control Module Generator Parts DSE5120
-
Auto Mains (Utility) Failure Control Module For Generator Parts DSE7120
-
Integrating Digital, Intelligent And Network Generator Controller For Generator Hgm6120
Product Details
| Brand Name | VICTORY POWER RELIABILITY | Place of Origin | China | |
| Model Number | YHG Brushless alternator 5KVA~1500KVA |
Product Description
Certification:CE, ISO, SONCAP
1. brushless synchronous generator
2. three phase synchronous generators
3.7.5KW / 9.375KVA
4.Victory Alternator
5KVA - 1500KVA YHG Three - Phase A.C. Synchronous Brushless Generator
YHG series generators also are three-phase brushless synchronous generator and have the same characteristic. YHG series brushless three phase synchronous generators are the newest products. YHG series generator’s construction and shape are different from TFW2 series generaror, these are the most different between YHG and TFW2. YHG series generators are designed to meet market’s requirement.
?
| Model | Rated Power (KW/KVA) | Rated Volt.(V) | Rated Curr. (A) |
| YHG-5 | 5/6.25 | 400 | 9 |
| YHG-7.5 | 7.5/9.375 | 400 | 13.5 |
| YHG-10 | 10/12.5 | 400 | 18.1 |
| YHG-12 | 12.0/15 | 400 | 21.6 |
| YHG-13 | 13/16.25 | 400 | 23.5 |
| YHG-15 | 15/18.75 | 400 | 27.1 |
| YHG-16 | 16/20 | 400 | 28.8 |
| YHG-18 | 18/22.5 | 400 | 32.5 |
| YHG-20 | 20/25 | 400 | 36.1 |
| YHG-22 | 22/27.5 | 400 | 39.7 |
| YHG-24 | 24/30 | 400 | 43.2 |
| YHG-25 | 25/31.25 | 400 | 45.1 |
| YHG-30 | 30/37.5 | 400 | 54.1 |
| YHG-34 | 34/42.5 | 400 | 61.3 |
| YHG-40 | 40/50 | 400 | 72.2 |
| YHG-50 | 50/62.5 | 400 | 90.2 |
| YHG-58 | 58/72.5 | 400 | 104.6 |
| YHG-64 | 64/80 | 400 | 115.6 |
| YHG-68 | 68/85 | 400 | 122.7 |
| YHG-75 | 75/93.75 | 400 | 135.5 |
| YHG-80 | 80/100 | 400 | 144.3 |
| YHG-90 | 90/112.5 | 400 | 162.6 |
| YHG-100 | 100/125 | 400 | 180.4 |
| YHG-120 | 120/150 | 400 | 216.8 |
| YHG-130 | 130/162.5 | 400 | 234.6 |
| YHG-140 | 140/175 | 400 | 252.6 |
| YHG-150 | 150/187.5 | 400 | 271 |
| YHG-160 | 160/200 | 400 | 288.6 |
| YHG-180 | 180/225 | 400 | 324.7 |
| YHG-200 | 200/250 | 400 | 360.8 |
| YHG-220 | 220/275 | 400 | 396.8 |
| YHG-250 | 250/312.5 | 400 | 451 |
| YHG-280 | 280/350 | 400 | 505 |
| YHG-300 | 300/375 | 400 | 541 |
| YHG-320 | 320/400 | 400 | 577 |
| YHG-350 | 350/437.5 | 400 | 631.5 |
| YHG-400 | 400/500 | 400 | 721.7 |
| YHG-450 | 450/562.5 | 400 | 813 |
| YHG-500 | 500/625 | 400 |
