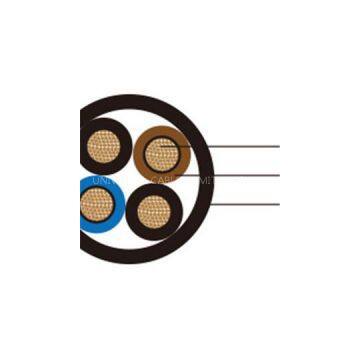

0.6/1 KV HEPR Insulated, LSOH (SHF1) Sheathed Flame Retardant Power Control Cables (Multicore)

Place of Origin	China

0.6/1 kV HEPR Insulated,Website: , LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)ApplicationThese cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free.StandardsDIN 89160/98IEC 60092-353IEC 60332-1IEC 60332-3-22IEC 60754-1/2IEC 61034ConstructionConductorsClass 2 stranded copper conductor.InsulationHEPR.Outer SheathLSOH (SHF1).Core IdentificationTwo cores: Black, Blue.Three cores: Black, Blue, Brown.Four cores: Black, Blue, Brown, Black.Five cores: Black, Blue, Brown, Black, Black.Multi cores: All cores natural coloured, printed with numbers, starting in center with number 1.Cables with 3 cores and more also with green/yellow core (has to be stated in order).Mechanical and Thermal PropertiesBending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)Temperature Range: -20℃ ~ +75℃Dimensions and WeightPart No.ConstructionNo. of cores×Crosssection(mm2)Nominal InsulationThickness mmNominal Sheath Thickness mmNominal OverallDiameter mmNominal Weight kg/kmM092-0.6/1KV-1G7H-R-2C1.52×1.50.71.08.4130M092-0.6/1KV-1G7H-R-2C2.52×2.50.71.19.3170M092-0.6/1KV-1G7H-R-2C42×40.71.110.5220M092-0.6/1KV-1G7H-R-2C62×60.71.211.8280M092-0.6/1KV-1G7H-R-2C102×100.71.213.8410M092-0.6/1KV-1G7H-R-2C162×160.71.316.2590M092-0.6/1KV-1G7H-R-2C252×250.91.520.1880M092-0.6/1KV-1G7H-R-3C1.53×1.50.71.18.9160M092-0.6/1KV-1G7H-R-3C2.53×2.50.71.19.9210M092-0.6/1KV-1G7H-R-3C43×40.71.111.1270M092-0.6/1KV-1G7H-R-3C63×60.71.212.6350M092-0.6/1KV-1G7H-R-3C103×100.71.314.8510M092-0.6/1KV-1G7H-R-3C163×160.71.417.3750M092-0.6/1KV-1G7H-R-3C253×250.91.521.51130M092-0.6/1KV-1G7H-R-3C353×350.91.624.21500M092-0.6/1KV-1G7H-R-3C503×501.01.828.51970M092-0.6/1KV-1G7H-R-3C703×701.12.032.92770M092-0.6/1KV-1G7H-R-3C953×951.12.137.43680M092-0.6/1KV-1G7H-R-3C1203×1201.22.341.64580M092-0.6/1KV-1G7H-R-4C1.54×1.50.71.19.8200M092-0.6/1KV-1G7H-R-4C2.54×2.50.71.110.9250M092-0.6/1KV-1G7H-R-4C44×40.71.212.3330M092-0.6/1KV-1G7H-R-4C64×60.71.213.9440M092-0.6/1KV-1G7H-R-4C104×100.71.316.3660M092-0.6/1KV-1G7H-R-4C164×160.71.419.2950M092-0.6/1KV-1G7H-R-4C254×250.91.623.91460M092-0.6/1KV-1G7H-R-4C354×350.91.727.01920M092-0.6/1KV-1G7H-R-4C504×501.01.930.52520M092-0.6/1KV-1G7H-R-4C704×701.12.136.73530M092-0.6/1KV-1G7H-R-4C954×951.12.341.74730M092-0.6/1KV-1G7H-R-5C1.55×1.50.71.112.3230M092-0.6/1KV-1G7H-R-5C2.55×2.50.71.213.3300M092-0.6/1KV-1G7H-R-7C1.57×1.50.71.213.3290M092-0.6/1KV-1G7H-R-10C1.510×1.50.71.315.8360M092-0.6/1KV-1G7H-R-12C1.512×1.50.71.316.3410M092-0.6/1KV-1G7H-R-14C1.514×1.50.71.417.0470M092-0.6/1KV-1G7H-R-16C1.516×1.50.71.418.0530M092-0.6/1KV-1G7H-R-19C1.519×1.50.71.419.0610M092-0.6/1KV-1G7H-R-24C1.524×1.50.71.522.0760
