Home > Products > Double Layer Roll Forming Machine > Thickness of the plate:0.3-0.6mm Double layer Corrugated Steel Roll Forming Machine

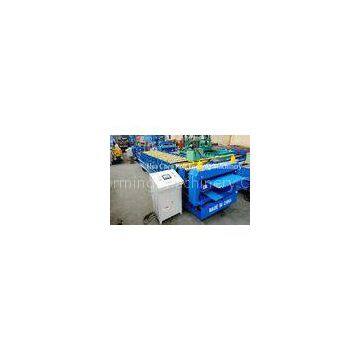

Thickness of the plate:0.3-0.6mm Double layer Corrugated Steel Roll Forming Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
high grade 45# steel(plated chrome on surface) Color Steel Sheet Double Layer Roof Forming Machine
-
12/13 rows Color Steel Sheet Roof Panel Color Steel Sheet Roll Forming Machine
-
Cr12 Color steel plate Double Deck Forming Machine with PLC control
-
1250mm Tile and Roof Double Layer Roll Forming Machines
-
Color Steel Plate Roof Double Layer Roll Forming Machine With PLC Control
-
45# Steel Wall Panel Double Layer Roll Forming Machine With 10 / 11 Rows
Product Details
| Brand Name | HC | Place of Origin | China | |
| Model Number | HC12/6 |
Product Description
Certification:ISO
Double-layer Corrugated Steel Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 12/15 rows
4. Dimensions: 8.7*1.45*1.91m
5. Power: 5.5+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Double layer roll forming machine Main parameter
|
No. |
?Main parameter of Double layer roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
upper level :12 rows Down level :15 rows |
|
4 |
Dimensions |
8800*1450*1910mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment?components:?Man-made?uncoiler-roll?forming?machine-computer?control?system-hydraulic control system- cutting
Application
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer? with limit area or site
Competitive Advantage
1. ISO/CE certification
2. 20sets/ month
3. high-speed production
4. easy operate, easy maintain
5.One year free warranty
Contact Us
- Huachen Roll Forming Machinery Company
- Contact nameMs. Lucy Chat Now
- Phone86-317-5666685
- AddressIndustrial zone of Botou,Hebei,China, Laiwu, Shandong
