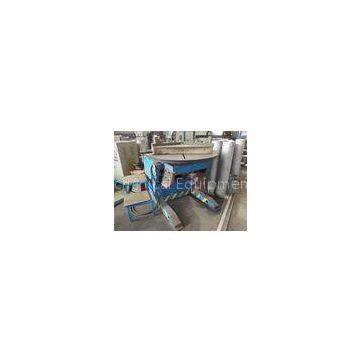

5T Horizontal Rotary Welding Positioner Turntables Speed Adjust By Inverter

Quick Detail

Horizontal turntables are used for welding, grinding and positioning purposes; Infinitly variable turning speed, achieved by an inverter controlled motor gearbox allows ideal possibilities for welding and positioning; Geared AC-motor, controlled by an inverter (Schneider or Panasonic) is driving the worktable over pinion and slewing ring. Main electric elements are ABB/Siemens brands; Hand pendant with Forward&Reverse Rotation and speed potentiometer are standard;

1. Introduction

Rotary welding positioners of the horizontal turntables are used for welding, grinding and positioning purposes. Infinitly variable turning speed, achieved by an inverter controlled motor gearbox allows ideal possibilities for welding and positioning. Large bearings ensure stability and smooth movements.

These turntables are designed for maximum loads of 5T to 250T have universal applications in the manual or automatic welding and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made rotary welding positioners according to your special requirements.

2. Main Parameters

Model	HZT5	HZT10	HZT20	HZT50	HZT100	HZT150
Max loading KGs	5,000	10,000	20,000	50,000	100,000	150,000
Rotation speed rpm	0.05—1	0.05—1	0.025—0.5	0.025—0.5	0.015—0.3	0.015—0.3
Worktable diameter mm	Φ1500	Φ1800	Φ2000	Φ2200	Φ2500	Φ2800
Worktable height mm	650	650	740	750	1150	1300
Way of speed control mm	VFD
Rotation motor power kW	1.1	1.1	1.5	2.2	3.5	3.5
Rotation torque KN.M	5000	5000	15000	20000	40000	50000
Power supply	380V 50HZ 3P or tailor made
Above are our standard models and parameters, and it can be designed and manufactured on request.

3. Main features

The standard models of our horizontal turntables have the following features:

Robust all steel fabrication; Geared AC-motor, controlled by an inverter (Schneider or Panasonic) is driving the worktable over pinion and slewing ring. Fully machined turntable of various sizes with centering grooves and T-slots; Sand blasting treatment to main welding parts before painting; All motion parts have lubrication system; Main electric elements are ABB/Siemens brands; Hand pendant with Forward&Reverse Rotation and speed potentiometer are standard; Lifting lug; Standard color:

Optional features:

Square worktable; Extension arms; Foot pedal; Extensive system accessories such as three-jaw chucks;

Comparative advantage

ISO9000&CE certified; Professional and experienced engineer team to ensure the advanced design about structure and electric; Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; Optimum materials and outsourcings to ensure the best performance; Commissioning and testing before delivery; Factory inspection is encouraged;
