Home > Products > Welding Turning Roll > Motorized Moving Self Adjustable Welding Turning Roll 20T Loading Capacity Pipe Rotator

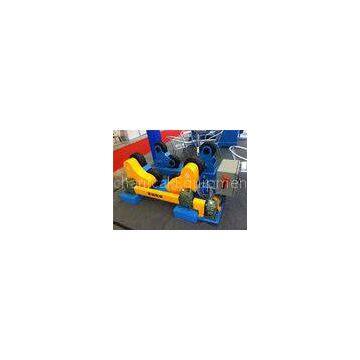

Motorized Moving Self Adjustable Welding Turning Roll 20T Loading Capacity Pipe Rotator
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Professional 80 Ton Capacity Automatic Tank Welding Turning Roll PU Wheels Rollers
-
100T Rubber Wheels Pipe Welding Turntable For Pressure Vessel / Piping Industry
-
Self Aligning Auto Welding PU Pipe Rollers Siemens Electric Controls 110V-600V
-
Pressure Vessel Welding Automation Equipment Pipe Rollers Self Aligning
-
5T - 500T PU Rollers Self Aligning Welding Turning Rolls 4KW Wired / Wireless Control
-
Self Adjustable Inverter Control Welding Rotators With Motorized Bogie
Product Details
| Brand Name | Sencan | Place of Origin | China | |
| Model Number | HGZ |
Product Description
Certification:CE
Quick Details:
Model number: HGZ
Type: Welding rotator/Welding turning rolls/Pipe welding rotator
Condition: 100% brand new
Color: Grey and yellow
Place of origin: Wuxi China(Mainland)
Voltage: 110V-600V
Usage: Welding
Dimensions and weight: According to the model
Description:
1. It will adjust the tank diameters automatically.
2. Wireless control is more convenient than remote control cable.
3. Can make work piece at optimum welding position (turning roll).
4. Low noise transmission and stable turning roller during working.
Specifications:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) |
Roller linear velocity(m/h) 6-60 |
Power of motor(kw) |
|
| Rubber rollers | Metal rollers | |||||
| HGZ-5 | 5000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 0.75 | |
| HGZ-10 | 10000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 1.5 | |
| HGZ-20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2.2 | |
| HGZ-40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 3 | |
| HGZ-60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 4 | |
| HGZ-80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 4 | |
| HGZ-100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 5.5 | |
| HGZ-150 | 150000 | Φ1000-6000 | / | Φ620×220 | 6 | |
| HGZ-250 | 250000 | Φ1800-7500 | / | Φ660×260 | 11 | |
| HGZ-500 | 500000 | Φ1800-8000 | / | Φ750×400 | 15 | |
Competitive Advantage
1. We are welding equipment MANUFACTURER, so we can offer better price and quality.
2. We have strong design & technical team, we can design as per the customer's requirement.
3. Our main products have been approved CE certificate and test.
4. We have exported to Europe, America, Middle East, Southeast Asia etc. more than 40 countries.
5. We provide a FREE ONE YEAR WARRANTY for all our items.
6. More than 6 years OEM service to European and North America.
