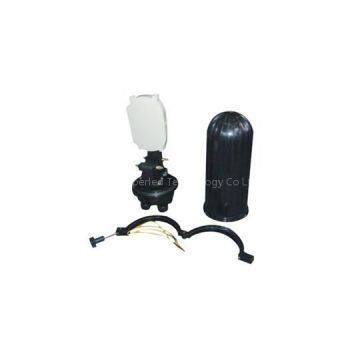

Fiber Splicing Enclosure Vertical Type（2 IN-2 OUT） 96 Fibers

Place of Origin	China

CL-FEVR-V02 Fiber Splicing Enclosure Vertical Type（2 IN-2 OUT） 96 FibersProduct detailsPurpose: aerial, direct-burying, wall-mounting, Pipeline laying wayexternal dimensions: 510mm×210mm (Erect type)Weight: 3kg (Erect type)Material: PCDimension (mm): 51×22CM (H×D)Cables Entry & Exit：2 out 2 inCable Diameter (mm): Φ7-Φ25Sealing Structure : Mechanical SealingMax Capacity of Core: 144 coresComponents: Seal tape 1PC, Insulation tape ?1PC, Nylon tie ?4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS.Environmental temperature: -40℃ to +85℃Atmospheric pressure: 70∽106KPaOptic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation.?Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.Insulation resistance: ≥2X104MΩMaximum capacity: 144cores ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??Span-life: 30 years.It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by networkUses and properties:It is belonged to open structure airproof tie-in system of machine pressure.It is used for the protective connection between two or more optical cables.Suitable for single core fiber optic cable and ribbon fiber optic cable.
