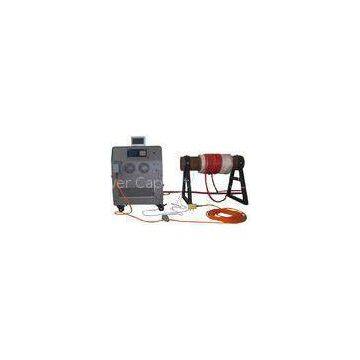

6 TC Input Induction Heating Machine 80Kw For Preheating Welding

6 TC Input Induction Heating Machine 80Kw For Preheating Welding??
?
Quick Detail:
?
Type:Other
Place of Origin:China (Mainland)
Brand Name:Canroon
Model Number:CR2000-080A-14T
Voltage:380V
Current:122A
Rated Capacity:80KW
Rated Duty Cycle:80KW
Dimensions:880*663*982
Weight:201Kg
Usage:induction temperature stress relievers
Certification:CE ISO9001:2008
After-sales Service Provided:Overseas service center available
Process:Induction heating equipment
Input Power:380V,3-Phase
Temperature recorder:6 Channel temperature recorder
?
Description:
?
The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450o F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.
?
Applications:
?
With the introduction of the Induction Pipe preheat , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

?
Specifications:
?

?
Competitive Advantage:
?
1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.
?
Tag:Pipe preheat
