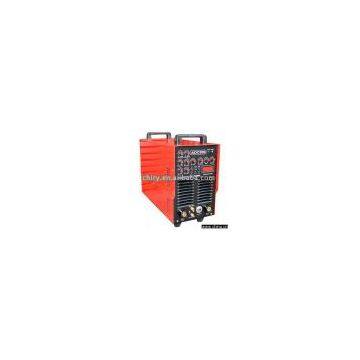

Sell Inverter AC/DC TIG Welding Machine

Place of Origin	China

Model No.:ADC-200
Product Origin:China
Brand Name:CHIRY
Price Terms:FOB, CIF, CFR, CPT, CIP
Payment Terms:T/T, L/C
Certification:CE
Description:Features: 1) Inverter full function pulsing AC/DC TIG (MMA) welding machine 2) Suitable for the welding of all the metals 3) With foot pedal control Specifications: 1) Input voltage: 220 - 240V, 50Hz/60Hz 2) MMA: a) No-load voltage: 60 - 80V b) Base current range: 5 - 160A c) Rated output current: 160A d) Duty cycle: 35% 3) AC TIG pulsing: a) No-load voltage: 60 - 80V b) Base current range: 10 - 200A c) SP%: 0.1 - 0.9 d) AC square wave frequency: 20 - 100Hz e) Duty cycle: 60% 4) DC TIG and pulsing TIG a) Pulse current range: 5 - 200A b) Duty cycle: 60% at 200A c) Current up-slope time: 0 - 10s d) Current down-slope time: 0 - 10s e) Base current range: 5 - 200A f) Pulse width ratio: 0.1 - 0.9 g) Pulse frequency: 0.5 - 25Hz h) After flow time: 1 - 25s i) ARC striking mode: contacting and high frequency as striking 5) Efficiency: ≥80% 6) Protection class of insulation: IP21 7) Exterior dimensions: 430 x 200 x 290mm Packing: 1pc per H/D box with foam Box dimensions: 60 x 35 x 40cm N.W.: 25kg G.W.: 35kg
