Helipad Landing Lights HL10X Xenon Strobe Beacon Heliport Visual Landing Guidance
- T/T L/C D/P D/A
- 7 days
You May Like
-
Double Obstruction Light LED Red Fixed or Flash , Aviation Warning Light
-
Aviation Obstruction Light Broadcasting Xenon Strobe High Intensity Type 24 Hours
-
2000cd L864 Type IP65 SS304L Body Solar Airfield Lighting , Aircraft Warning Lights On Towers
-
5W 20 - 60 Fpm Aviation Obstruction Light for High Rise Buildings
-
IP65 Aviation Obstruction Light 20W GPS Sychnronized Flashing
-
Led Obstruction Lights Red Night Flashing 40 Fpm Failure Alarm With Control Panel
Product Details
| Brand Name | PLUSAFE | Place of Origin | China | |
| Model Number | HL10X |
Product Description
Certification:ISO9001

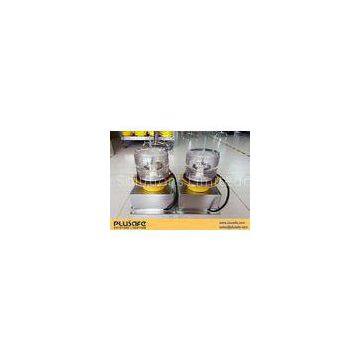

Helipad Landing Lights HL10X Xenon Strobe Beacon Heliport Visual Landing Guidance
The model is a white flashing light. A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary;or identification of the heliport is difficult due to surrounding lights. The light shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.
Specifications:
| Light Characteristics | |||
| International standard | ICAO Annex 14 volume II; Heliports | Effective intensity | 2500cd |
| Light technology | Xenon lamp | Available color | White |
| Flash | 4 flashers/2 sec. | Operation mode | Wire |
| Electrical Characteristics | |||
| Operation mode | Wire | Operation voltage | 220V ac/48V dc |
| Consumption |
15 Watts |
? | ? |
| Physical Characteristics | |||
| Body material | SUS304 stainless steel | Lens material | Polycarbonate |
| Mounted type | Flat surface mounted | Mounting | 4×(dia)12mm hubs |
| Overal dimension | 200mm×180mm×380mm | Net weight | 3kg |
| Working temperature | -40c degree to +60c degree | Waterproof rating | IP65 |
| Environmental Factors | |||
| Humidity | 0 to 98% | ? | ? |
| Altitude | <4500m | ? | ? |
| Wind speed | Up to 80m/s | ? | ? |
| Others | |||
| ISO pass | ISO9001:2008 | ? | ? |
Key Features:
Lens adopts Polycarbonate material of excellent impact resistance, thermal stability, great transparency, UV stabilized. Bottom base is made of SUS304 stainless steel. Painted by yellow spraying plastics on the lamp base, adaptable in corrosion weather. Light technology adopts xenon tube, expectancy service lifespan reaches 100,000,000 flahsers. Built in surge protection device, can be used in harsh environment.Typical Application:
Surface level heliport Elevated heliport Helideck Shipboard heliportPacking:
Packing size – 23cm×25cm×43cm
Competitive Advantage:
PLUSAFE SOLUTIONS LIMITED (P.S.L) providing reliable and costing products and services. Based on our experienced technical teams and qualified factory the lights are manufactured followed by ICAO, FAA and relevant regulations. We value our customer needs and honesty is 1st in our culture.
l Supply all range of aviation lights and customize service.
l Focus on LED Technology Solutions development.
l Reasonable price and good service.
