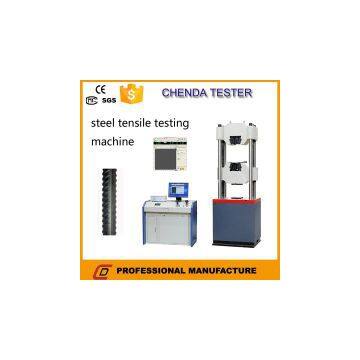

1000knHydraulic Universal Testing Machine Price+Tensile Testing Machine +Universal Tensile Testing Machine
- 300 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Brand Name | Chenda | Place of Origin | China | |
Model Number | WAW-1000D |
Product Description
Brief Introduction:
WAW -1000D Series Computer Control Servo Hydraulic Universal Testing Machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes.
Standards:
1) ISO6892: DIN EN 10002-1, JIS Z2241, BS-18, ASTM E8: Metallic Material-Tensile Testing at Ambient Temperature.
2) ASTM A730: Standard Test Methods and Definitions for Mechanical Testing of Steel Products
3) ASTM E4: Standard Practices for Force Verification of Testing Machines
4) EN 10002-4: Tensile Testing Of Metallic Materials - Verification of Extensometers Used In Uniaxial Testing
5) ISO75000-1: Verification of Tension/Compression Testing Machines
Load Frame:
The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.
Measuring System:
The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer
Control System
1>By using oil pressure transducer.
2>Full computer controlled of testing process.
3>Adopt oil-hydraulic automatic clamps which can be operated from separate control box
4>Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test.
Technical specifications:
SpecificationWAW-1000D
Max. capacity (KN)1000
Relative error of reading≤±1%
Clamping methodHydraulic clamping
Round specimen clamping range(mm):Φ13~Φ26 Φ26~Φ40 Φ40~Φ60
Flat specimen clamping thickness(mm):0-40
Flat specimen clamping width(mm):110
Max. tension test space (mm)550
Max. compression test space (mm)550
Cabinet dimension(mm)1200*620*850
Frame dimension(mm)1000*660*2400
WeightApprox.3500kgs
Column net distance (mm)580
Power supply (KW)380V 50HZ
Safety devicesSoftware and machinery protection
Span of bending roller (mm) 400
Width of bending roller (mm)140
Diameter of bending roller (mm)Φ40
Compression platen size (mm)200*200
Max. piston stroke (mm)250
Piston max. speed (mm/min)Approx.80
