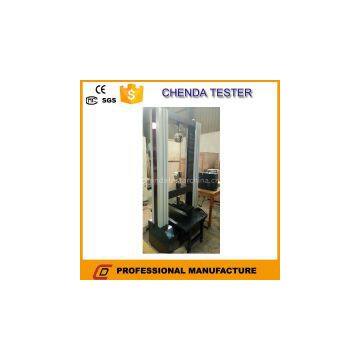

Centralizers Testing Machine +Spring Centralizers Compression Testing Machine +Electronic Universal Testing Machine

Main technical specifications:

1> Host:

The host adopts  double space -door structure. The tensile space is on the upper of the host. The compression and bending test space is between the lower crosshead and test table.

2> Transmission system:

The motor drag the ball screw pair to rotate through synchronous belt and the deceleration system .so as to drive the middle crosshead to move up and down to complete the test, the transmission is stable and the noise is low.

Electronic Measurement And Control System

1> AC servo drive and AC servo motor,Stable and reliable

2>Protection Function: Such as overload protection, over flowing protection,over voltage protection,Emergency stop protection and so on

3> Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.

4>Control software has the the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.

5>At the end of the test, It  can manually or automatically return to the initial position of the test.

Software features

1. Language selection: English Or Russian interface freely switch operation,

2. Basic functions: calculate and list data graphics: the basic parameters of a material testing machine: (1).yield point(2).0.2% off set.(3). Yield strength(4). Tensile strength(5). Elongation(6). Energy absorption(7). Maximum(8). Rupture values(9). Deformation amount (10). Averages. More than twenty parameters contrast to graphics.

Technical specification:

Mode                           WDW-100

max. test force                100KN

Test force testing range       1%-100%

Testing machine accuracy grade  1

Crosshead displacement resolution 0.001mm

Adjust speed range              0.05-500mm/min

Tensile test space               550mm

Total travel of moving crosshead 800mm

Compression test space           800mm

Effective test width             650mm

Compression Diameter Upper Platen :550*200mm

Lower Platen:                    850*600mm

Host dimension          1160mm x 600mm x 1750mm

Weight              550kg

Power Supply   220volts, 3 phase, 60 hertz
