Flywheel processing combination machine tool

Flywheelprocessing combination machine tool

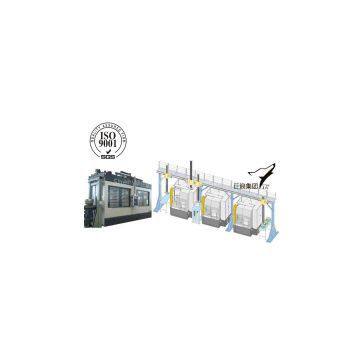

Billon flywheel specialprocessing combination machine tool can realize double processing at the sametime and robot automatic up-down material, which can improve the efficiency of80%.

Features:

1. 1.       Electricaland integration design , reasonable structure ,and simple operation.

2. 2.       Billonflywheel and driving wheel CNC machine tool is suitable for two-dimensional ,three-dimensional processing at the same time .

3. 3.       Fullyenclosed electrical cabinets , supplemented by air loop design, good wind dustand cooling effect .

4. 4.       Doublechannel control system, double frame structure, two group of independent knifeline (X1Z1,X2Z2).

5. 5.       Hydraulicpower chuck workpiece clamping makes the machine convenient automatic up-downmaterial and save manpower.

6. 6.       Themachine has centralized lubrication device and can realize lubrication at anytime .

7. 7.       Themachine can realize double processing at the same time ,which can improve thework efficiency by 80%.

Technical parameters:

Model                         VT4040F   VT6570F          VT9080F

Max rotating diameter (mm)         600        800          1000

Max turning diameter (mm)          400       650            900

Max turning height(mm)             450       700           800

Max machining weight(kg)           200        800          1200
