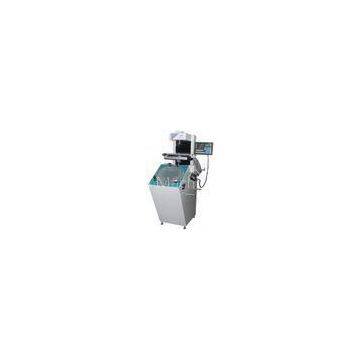

Inverted Optical Profile Projector 350 mm Screen Magnification Error 0.08 %
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Metal Observing metallurgy microscope with DIC Differential Interference Contrast
-
90 Degree L Type High Speed Industrial Camera Parallel Light Source Automation
-
Waterproof Industrial Digital Camera Light Source Controller Multiple Terminals
-
APO Attached Industrial Lens / TV Lens Tube Low Deformation 0.25 X - 2 X
-
Large View Field Industrial Lenses Telecentric Low Deformation Optical Zoom Lens
-
Double Magnification Industrial Camera Lens / Telecentric Lens For Two Cameras
Product Details
| Brand Name | UNIMETRO | Place of Origin | China | |
| Model Number | UNPJ21 |
Product Description
Inverted Optical Profile Projector 350 mm Screen Magnification Error 0.08 %
Features
Inverted optical profile projector, easy operation.
Coolant system included, avoiding over-heating.
Special design for the image describing and contour observing.
The lens switching is using inserting mode, without screw threads, easy changing of the lens.
Including powerful function digital read out system.
Projector screen
Screen diameter: 350mm
Rotating range: 0 - 360 degrees
Rotating angle resolution: 1’
Rotating measuring accuracy: 4’
Working stage
| Work stage dimension(mm) | 380 x 230 |
| Measuring range(mm) | 200 x 100 |
| Focusing range(mm) | 0 - 100 |
| Resolution(mm) | 0.001 |
| Measuring accuracy | 3+L/75um (L is the measuring length, unit:mm) |
| Max. loading(kg) | 5 |
Lens
| Magnification | 5X | 10X | 20X | 50X |
| View range | φ70mm | φ35mm | φ17.5mm | φ7mm |
| Working distance | 163mm | 89mm | 76mm | 60mm |
Magnification error: 0.08%
Illumination
Contour light: 12V100W halogen lamp
Vertical reflecting light source: 24V150W halogen lamp
Inclined reflecting light source: 24V100W halogen lamp, only for 5X lens
Working environment
20℃±5℃, humidity 40%－70％RH
Working dimension (mm) : 854 x 480 x 1401
Weight: 138kg
