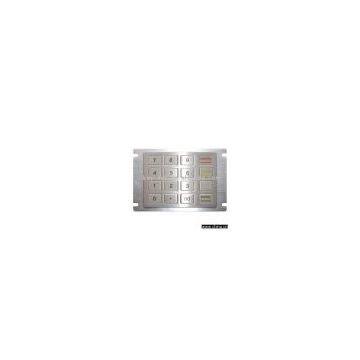

Sell Compact Metal PINPAD with DES/TDES for ATM/CDM

Place of Origin	China

Model No.:K-TEK-B120PP(16)
Product Origin:China
Brand Name:Key-Tek
Price Terms:FOB, C&F
Payment Terms:T/T in advance, L/C
Certification:RoHS, IP65, CE, FCC
Description:Product Name: Compact Metal PINPAD with DES/TDES for ATM/CDMModel Number: K-TEK-B120PP(16)Place of Origin: ChinaMain features: Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available. The PINPAD in 4 x 4 matrix with Enter, Cancel, Correction, etc. compliance with ISO standard. 16 bytes keys (16 master keys x 4 working keys), it can be self destructive with back-up battery to achieve this function. The PINPAD can be used as a keypad for numeric entry. The ATM can instruct PINPAD to exit key entry/supervisory mode. Communication parameter: 1) Standard RS232 serial interface 2) Communication velocity: 19200, 9600, 4800, 2400, 1200bps 3) Data format: N, 8, 1 4) 16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup, key 3 defined for ABC 5) Data encryption and decryption (DES/TDES), MAC algorithm 6) Encryption rate: < 1 second Mechanical data: 1) Actuation force: 3N (pressure point) 2) Key stroke: 0.45mm 3) Front panel: brushed stainless steel 4) Actuator/keys materials: stainless steel 5) Mechanical key lifespan: 3 Mio actuations 6) Lettering: laser engraving or raised letter 7) Dimensions: 120.00 x 90.00 x 33.00mm (L x W x H) 8) N.W.: 0.70kg Electrical data: 1) Switching material: gold-gold 2) Power supply voltage: +5V DC 3) Power consumption: under 1W for operating condition, 200mA for non-operating condition 4) EMC: EN55022(B) 5) Communication interface: RS232 or USB available 6) Enter PIN: 10 numerical keys and 6 function keys Environmental adaptability: 1) Operating temperature: 0 ~ +45°C 2) Storage temperature: -10 ~ +55°C 3) Operating RH: 30 - 90% 4) Atmospheric pressure: 60 - 106Kpa 5) Keypad is watertight while being mounted correctly on ATM Reliability: 1) RoHS complaint, CE and FCC, IP65 2) Sensitive data can be well saved while sudden power off 3) Sensitive data and program can be erased when being tampered 4) Protection level: IP65 5) Vandal resistant IK07 6) Key lifespan:> 3 million actuations 7) MTBF:>20,000h 8) MTTR: <30min
