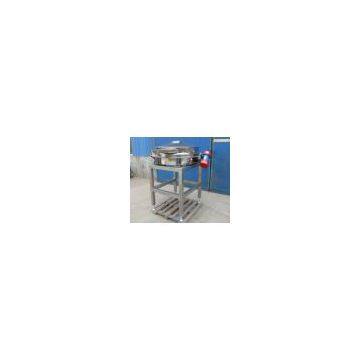

Direct discharging vibrato separator for sale

1. Product introduction

HL Direct discharging screen is a new and multi-functional screeningmachine, and using one horizontal motor as the source of vibration. Manyvarieties of adjustment ways for movement of materials on screen surfaces. Materialcan be discharged directly. High screening efficiency; large handling, easy toreplace the set, simple to operate and convenient to be clean.

2. Applications

Extensively used for sifting, sorting, and pellet materials in flour,starch, washing power, metal powder, additive, chemical, nonmetal mineral etc.Be provided with 600mm up to 1800mm.

3.       Working principle

The working principle of the direct discharging screen is using thetwo sets of eccentric at the both ends of the vibration motor shaft to the vibrationmotor rotational motion into horizontal, vertical, inclined and centrifugation..Then pass the force to the surface of the vibrating screen. Changing therelative angle and weight of the upper and lower eccentric could change thesize of the exciting force and trajectory of the material.
