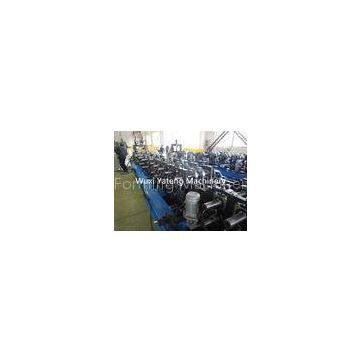

Chain Driven Roofing Sheet Making Machine , Big Shaft Metal Roof Roll Forming Machine 20.5 Kw

High Quality Quick Interchangeable CZ Purlin Roll Forming

Machine with Chain Driven and Big Shaft

Why choose us?

1. Certificate: ISO 2000, CE.
2. 1 year free and?Lifetime services
3. Introduced Panasonic PLC with MCGS touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 75mm diameter solid steel shaft. Lifetime>10years.
5. With 15 years professional manufactural experience
6. Technican overseas installing and training?available.

Details information

Production processing
De-coiler --- Material leveling---Coil strip feeding---Roll forming---Hydraulic punching---Cut to length---Protects collecting platform

Unit performance:
1. Width of material steel:100-500mm, thickness:2.5-3mm(depend on profiles)
2. Product speed: 8-12m/min
3. Total power: about 20.5 kw
4. Occupy ground are length 18m x width3m(depend on final profiles)

Each part main parameter:
1. De-coiler: ?Inner expanding , capacity:5T
2. Guide Rack: 2 sets of guide roller
3. Flatting roller number: 7 sets

Roll forming part:
1. Rack: cast iron type,Material:HT200
2.?Roll forming station 18?stations(depend on profiles)

3.?Roller material:45# steel, coated with chrome, Quenching

4.?Shaft diameter:Φ75mm ,material is 40Cr,tempering treatment
5.?Drive type:Chain?driving.
6.?Material of rollers:GCr15, Quenched treatment 58-62℃.
7.?Cutting-to-length:Hydraulic cutting,

8.?Cutting?power:5.5kw
