Product Details

Brand Name	APT Power		Place of Origin	China
Model Number	A-C33

Product Description

Delivery Time:25 Working Days After Received Deposit
Certification:CE/SONCAP/SASO/SGS

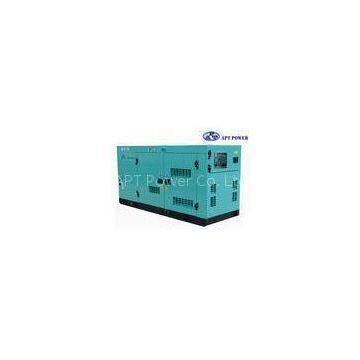

30kVA 1500rpm Cummins Diesel Generator with AMF / ATS Panel , AC Output

Generator sets are subjected to a comprehensive performance test which includes 50% load, 75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.

Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables. Equipped with industrial silencer and flexible exhaust hose. Equipped with 8-hours operation base fuel tank. Equipped with Delixi MCCB circuit breaker. Designed to Comply with ISO8528/GB2820. Powered by Cummins engine and coupled with Stamford alternator.

Specifications:

Contact Us

Fuzhou APT Power Co. Ltd: Contact nameMr. Edward Ye
Chat Now; Phone86-591-38250855; AddressRm401, No. 2 Building, Liantong Garden, No. 68, Minjiang Road, Fuzhou City, Fujian Province, China., Yantai, Shandong

*Email
Please enter Your valid email address.
*To

Mr. Edward Ye
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

?Model		A-C33
?Standby Power	kVA	33
	kW	22
?Prime Power	kVA	30
	kW	24
?Frequency	Hz	50
?Output Voltage	V	400/230
?Oil Consumption	L/H	0.056
?Dimension For Open-type	mm	1780 X 750 X 1050
?Weight For Open-type	kg	880
?Dimension For Soundproof	mm	2300 X 900 X 1250
?Weight For Soundprof	kg	1200
?Engine Manufacturer		Dongfeng Cummins Engine Co., Ltd.
?Engine Model		4BT3.9G1
?No.of Cylinder		4 Cylinder in line
?Bore	mm	102
?Stroke	mm	120
?Displacement	L	3.9
?Cooling Fan Air Flow	m3/min	135.6
?Compress Air Flow	m3/min	4.13
?Exhaust Gas Flow	m3/min	9.96
?Exhaust Gas Temperature	℃	475
?Lubrication Oil Capacity	L	11
?Cooling Water Capacity	L	28
?Starting Voltage	V	24
?Engine Max.Output Power	kW	39.6
?Alternator Manufacturer		Cummins Generator Technolgoies
?Alternator Model		PI 144G
?Alternator Brand		Stamford
?Rate Output	kVA	30
?Frequency	Hz	50Hz
?Altitude	M	≤1000
?Insulation		Class H
?Protection Grade		IP23
?Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
?Control Panel Model	?AF500
?Controller	?Deepsea Brand Model DSE7320
?Function of control panel	?Automatic genset start/stop
	?Automatic battery charger
	?Emergency stop
	?AMF (Automatic Mains Fault)
	?Remote control
	?Micro-processor based design
	?LED alarm indication and Sound alarm
?Display of the controller	?Generator voltage: Uab, Ubc, Uca
	?Generator current: Ua, Ub, Uc
	?Generator temp.: ℃/℉ both display
	?Generator frequency: Hz
	?Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
	?Generator starts count: 999999 times (Max)
	?Generator pressure: kPa/Psi/Bar both display
	?Charging Voltage: V
	?Battery Voltage: V DC
?Protection of Diesel Generator	?Over / Under Speed Alarm and Shutdown
	?Start / Stop Failure Alarm
	?Over Current Alarm and Shutdown
	?Under / Over Generator Voltage Alarm and Shutdown
	?Low Oil Pressure Alarm and Shutdown
	?High Engine Temperature Alarm and Shutdown
